Pi-Box Pro 5
Pi-Box Pro 5
As low as
£29.66
The Pi-Box Pro 5 comes with:
- Extender Board
- Carrier Plate - cut to accomodate the Rapsberry Pi Active Cooler
- E-Case B Extrusion
- Aluminium End Plate
- Acrylic End Plate (For WiFi & Bluetooth)
- Screws & Fixings

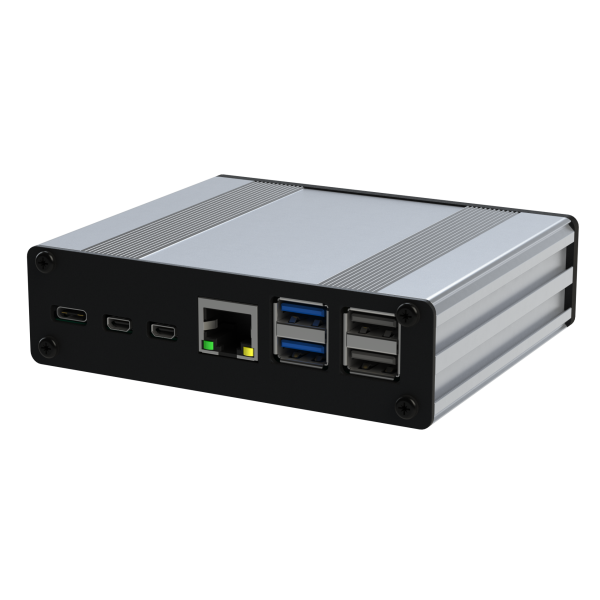

The Pi-Box Pro 5 is a rugged industrial enclosure kit for the Raspberry Pi5. By utilising our Pi HDMI Pi4/5 extender board we can turn the power and micro HDMI connectors through 90° so that they are on the same plane as the ethernet and USB connectors.
The rear panel is made from 3mm acrylic and allows for communication via Bluetooth and Wi-Fi signals from the Pi5.
The standard version allows for access to the SD Card from the assembled enclosure and the NS version contains the SD Card within the sealed enclosure.

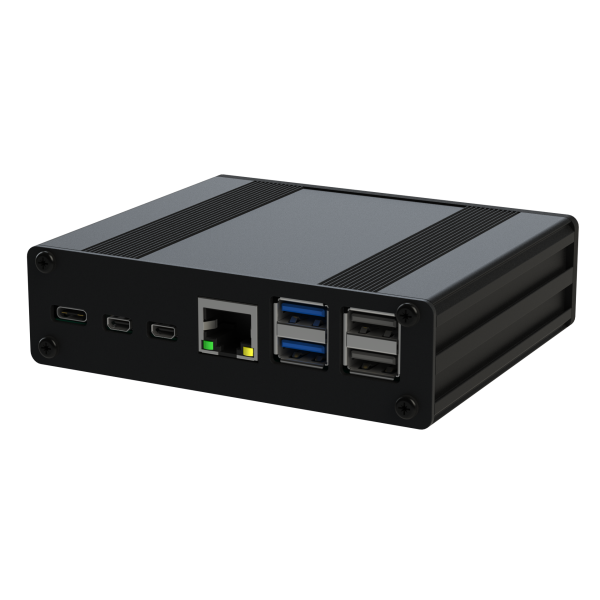

Case is available in silver or black as standard. End plates are black
Extrusion
Material: Aluminium 6063 T6 (HE9)
Finish: Silver anodised 5μm or black anodised 10μm
Front End Plate
Material: Aluminium 5005 sheet
Finish: Black anodised 10μm
Thickness: 1.5mm
Available in Black as standard.
Rear End Plate
Material: Acrylic
Finish: Black
Thickness: 3.0mm
Screws
No. 4 x 3/8” Posi-pan head Plastite self-tapping screws
Assembled Dimensions
Std version : 108.5mm x 30mm x 91mm
NS version: 108.5mm x 30mm x 94mm
The Pi-Box Pro5 is designed to house the Raspberry Pi 5, the Lincoln Binns Extender Board and the Raspberry Pi Active Cooler
Customisation
For alternative colours or full customisation, including fitting a HAT, go to the customisation area of the website
Please note: Lincoln Binns does not supply the Raspberry Pi, the Active Cooler or any additional cables or power supplies
