Electronic Enclosure Specialists
Custom E-Case Enclosures

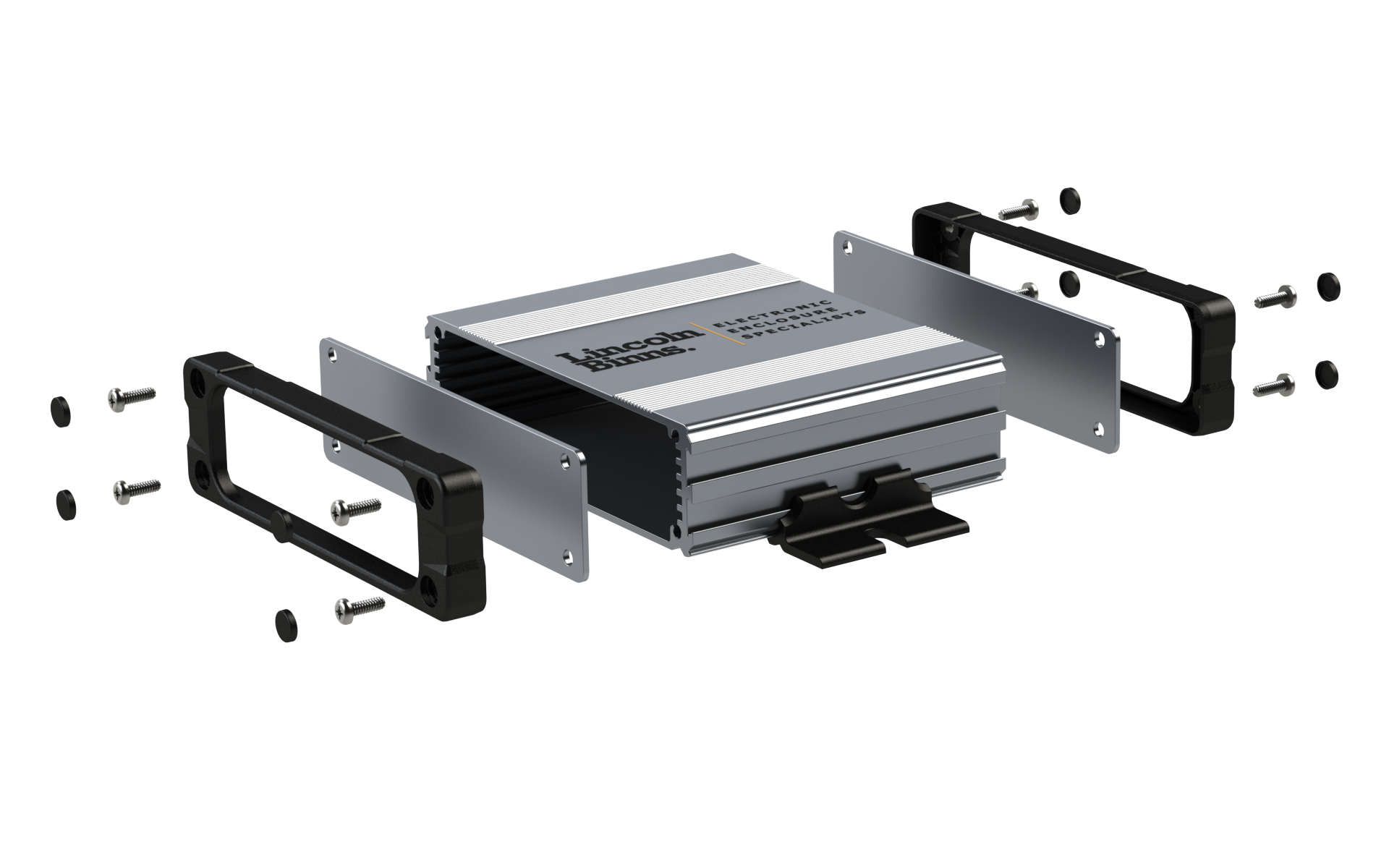

The E-Case box extrusion can be customised to suit your application
- Custom Options include:
- Extrusion - Length, colour, cut-outs, artwork
- End Plates - size, thickness, colour, cut-outs, fixings and artwork
- Carrier Plates - size, cut-outs, fixings and artwork
These can be purchased as off the shelf standard products in our online shop.
- 55mm wide PCB or carrier plate
- Maximum height of components is 18.6mm
- Weight: 1.0kg/m
E-Case B
- 100mm wide PCB or carrier plate
- Maximum height of components is 18.6mm
- Weight: 1.38kg/m
E-Case C
- 100mm wide PCB or carrier plate
- Maximum height of components is 33.6mm
- Weight: 1.63kg/m
E-Case D
- 160mm wide PCB or carrier plate
- Maximum height of components is 40.75mm
- Weight: 3.4kg/m
Custom Options
Extrusion
- Can be cut to length: 40mm to 1500mm
- Cut tolerance: -0mm / +0.5mm
- Surface finish: Anodised, Anti-corrosion or Powder Coated
- Milled cut-outs or recesses
- Laser marked or digital print
End Plates
- From 1.5mm up to 10mm thickness
- Over sized
- 19″ rack mount
- Aluminium, Zintec or Acrylic
- Various surface finishes and colour options
- Milled or punched cut-outs
- Laser marking or digital print
Carrier Plates
- Manufactured to specified dimensions
- Various surface finishes & colour options
- Punched cut-outs
- Laser marked or digital print
Cut to length:
Available in cut lengths from 40mm to 1500mm for UK shipments and 1000mm for standard worldwide shipping. Longer lengths can be shipped but will need to be discussed further.
Cut tolerance: -0mm / +0.5mm
CNC Milling:
Holes for connectors or light pipes and large cut-out for LCD screens can be milled into the extrusion as well as a recess for labels or a membrane.
Please note we will require the following information:
- Full list of the components being used
- Dimensioned drawing. Preferred formats are STEP, IGES, DXF or SolidWorks files but we will work from a hand drawn sketch
Surface Finish:
Anodised Colour Options: Clear (SIlver), Black, Blue, Red, Green. Please call to discuss other options.
The maximum length of extrusion that can be anodised is 1Mtr
Anti-corrosion coatings: Surtec 650 or Iridite NCP
Powder Coating: Fine texture; Black, Red and Grey. Please call to discuss other options. For other colours a RAL number is required
Masking available upon request.
Artwork:
Artwork can be applied to the enclosure in one of 2 methods:
- Full-colour Digital Print
- Laser Marking
Please note we will require the following information:
- For best results, we will need you to provide us with logos and icons in a vector format.
- A list of all fonts used.
Material Options

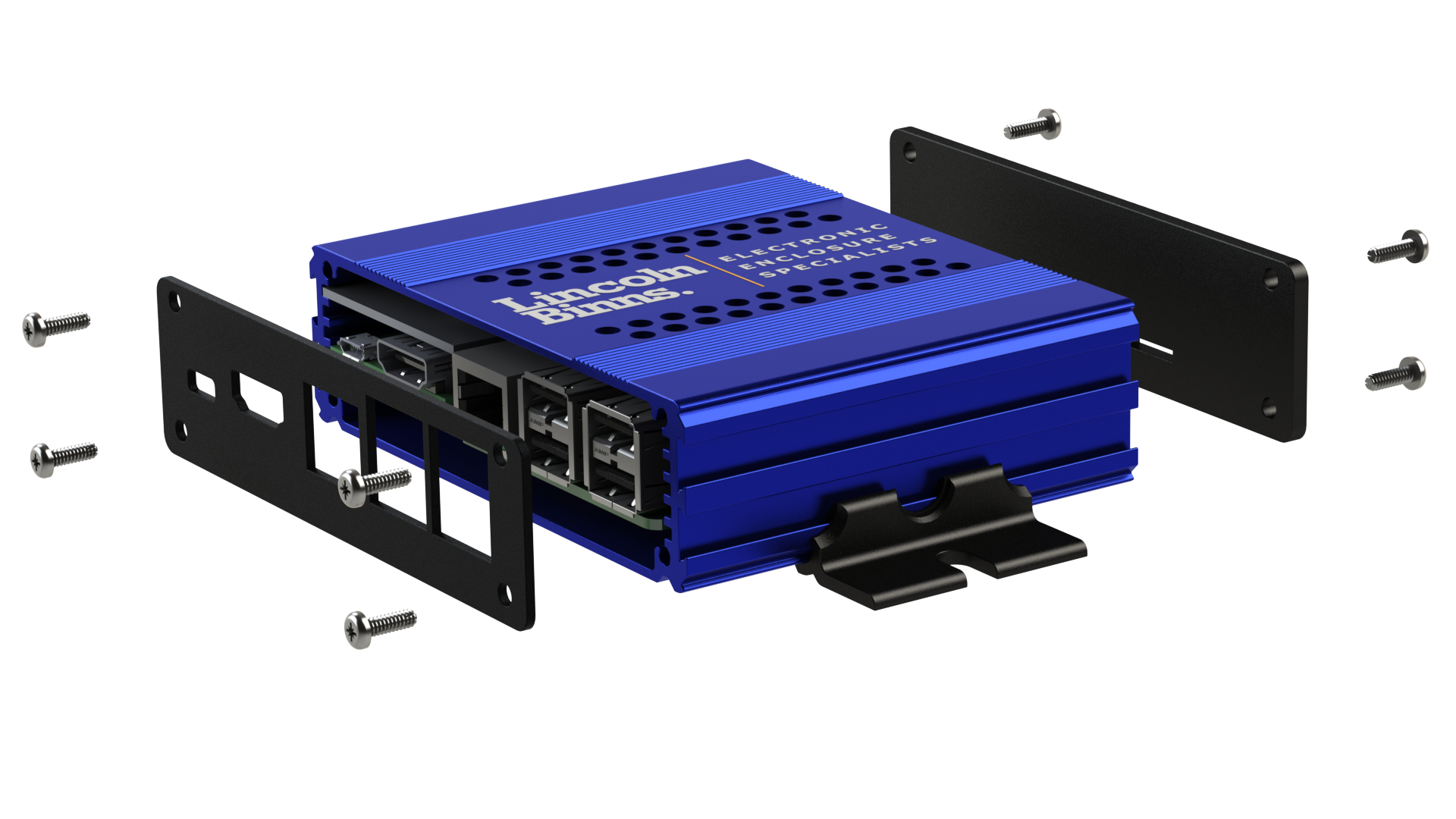

All of our standard end plates are Aluminium, however we can supply end plates in Zintec if you require a thinner plate or from acrylic if you need Bluetooth or Wi-Fi connectivity
Material Options - Thickness:
Aluminium:
Standard sizes: 1.5mm (E-Case A, B & C) and 2mm (E-Case D) thickness.
Thinner end plates, down to 0.9mm
Thicker: end plates, up to 12mm
Zintec: - Can be manufactured from 0.7mm up to 3mm
Acrylic: - Can be manufactured from 3mm to 12mm
Cut-outs:
Depending on the thickness of the end plate – see below, we will either CNC Punch, Mill or Laser cut the panel. Holes can be straight through, counter-bored or counter-sunk.
Please note we will require the following:
- A full list of the components being used.
- Dimensioned drawing. Preferred formats are STEP, IGES, DXF or SolidWorks files but we will work from a hand drawn sketch
Flanged Plates:
The end plates can also be folded 90 degrees to act as a foot or for surface mounting
Plates up to a thickness of 5mm can be cut and folded
Oversize Options:
Standard end plates are the same width and height as the extrusion but we can manufacture the plate oversize
- This could be so that the front plate is used as a fixing option in a control panel
- The panel can be taller with a cut out to act as a handle
- To sit below the extrusion to act as a foot or shaped to form feet
Sub-Panels:
On end plates thicker than 3mm we can cut through and recess a hole complete with clinch fasteners – see below, to fit a sub-panel.
Please note we will require the following:
- A full list of the components being used.
- Dimensioned drawing. Preferred formats are STEP, IGES, DXF or SolidWorks files but we will work from a hand drawn sketch
19" Rack Mount Options:
The front panel can be manufactured so that the enclosure can be mounted into a 19″ rack
Standard sizes: 1U, 2U and 3U
Depending on which E-Case is used, up to 3 units can be mounted side by side
Larger sizes available upon request
Clinch Fasteners:
A range of bushes, nuts and stand-offs can be added either as a means to mount your PCB or additional components or a grounding point.
Please note we will require the following:
- A full list of the fastenings being used.
- Dimensioned drawing. Preferred formats are STEP, IGES, DXF or SolidWorks files but we will work from a hand drawn sketch
Surface Finish Options - Brushed:
All end plates 3mm or thicker are made from raw aluminium and will, therefore, go through a brushing (graining) process prior to the surface finish is applied.
Finish:
Andodised colour options: Silver, Black, Blue, Red, Green. Please call to discuss other options.
Anti-corrosion coatings: Surtec 650, Iridite NCP
Powder coating: Fine texture. Black, Red and Grey. Please call to discuss other options. For other colours, RAL numbers will be required
Masking available upon request.
Artwork:
Artwork can be applied to the end plates in one of 2 methods.
- Full-Colour Digital Print
- Laser Marking
Please note we will require the following:
- For best results, we will need you to provide us with logos and images in a vector format.
- A list of all fonts used
Thickness Options:
Aluminium:
Standard sizes: 1.5mm or 2mm
Thicker carrier: plates, up to 12mm
Cut-outs:
Cut-outs can be added for mounting the PCB and other components within the extrusion. Cut-outs can be added to give clearance to other components.
Please note: We will require a full list of the components being used. A dimensioned drawing. Preferred formats are STEP, IGES, DXF or SolidWorks files but we will work from a hand drawn sketch
Positioning:
The carrier plate can be used in one of two ways.
Below with the PCB and components mounted above
Above with the PCB and components hanging below
Clinch Fasteners:
A range of bushes, nuts and stand-offs can be added either as a means to mount your PCB or additional components or a grounding point.
Please note we will require the following:
- A full list of the fastenings being used.
- Dimensioned drawing. Preferred formats are STEP, IGES, DXF or SolidWorks files but we will work from a hand drawn sketch
Surface Finish:
Anodised Colour Options: Clear (SIlver), Black, Blue, Red, Green. Please call to discuss other options.
Anti-corrosion coatings: Surtec 650 or Iridite NCP
Artwork:
Artwork can be applied to the carrier plate in one of 2 methods.
- Full-Colour Digital Print
- Laser Marking
Please note we will require the following:
- For best results, we will need you to provide us with logos and images in a vector format.
- A list of all fonts used.
