RP4 19" Rack Solutions - Removable
RP4 19" Rack Solutions - Removable
As low as
£62.38
19" Rack solution for housing the Raspberry Pi 4.
- House the PI-Box Pro
- Standard and -NS versions
- With or without Heatsink Kit

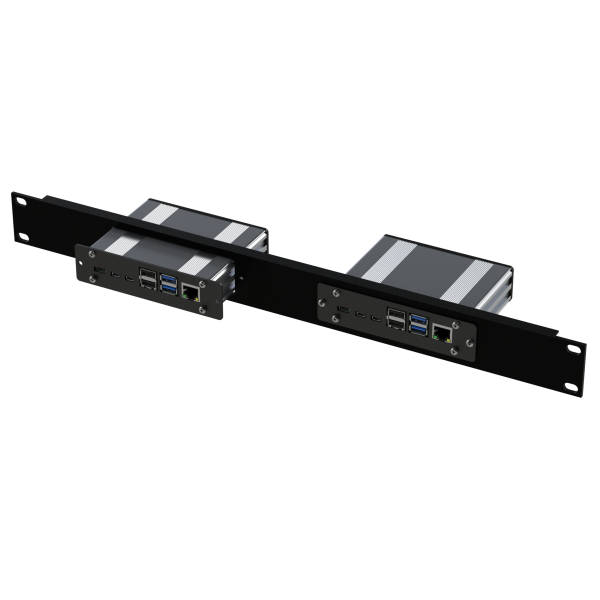

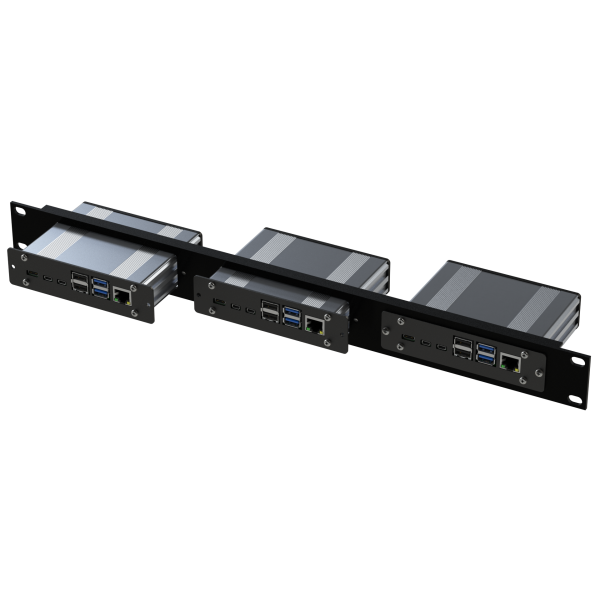

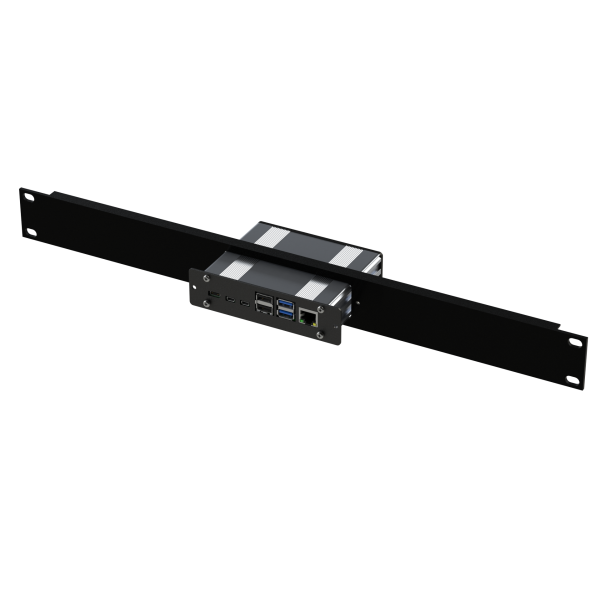

- 1, 2 or 3 units wide
- Removable units
- Black anodised with brushed finish

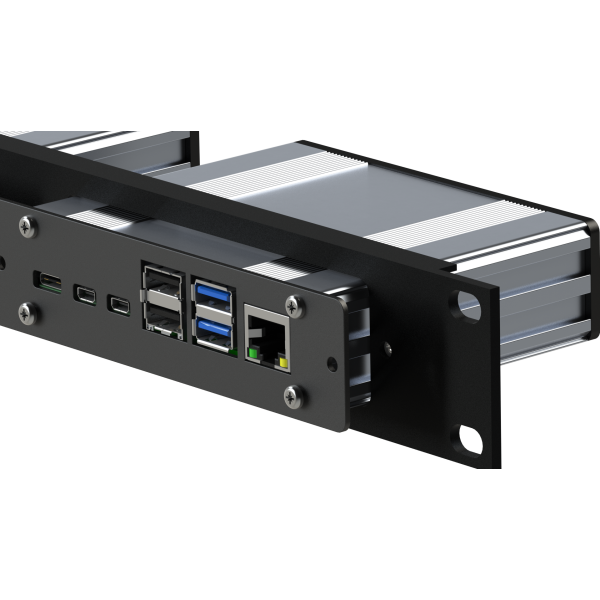

A 1U 19" extrusded aluminum rack panel milled to fit a removable PI-Box Pro 4 unit(s).
Available in 1, 2 or 3 unit versions.
Panels are available in black anodise with a brushed finish.
The Pi-Box Pro 4 is and rugged industrial enclosure kit for the Raspberry Pi4. By utilising our micro HDMI Pi4 extender board we can turn the power and micro HDMI connectors through 90° so the they are on the same plane as the Ethernet and USB connectors.
A heatsink kit has been developed and can be order as an option if required.
The rear panel is made from 3mm acrylic and allows for communication via Bluetooth and Wi-Fi signals from the Pi4.
The standard version allows for access to the SD Card from the assembled enclosure and the -NS version contains the SD Card within the sealed enclosure.
Available in black as standard.
Extrusion
Material: Aluminium 6063 T6 (HE9)
Finish: Silver anodised 5μm or black anodised 10μm
Front End Plate
Material: Aluminium 5005 sheet
Finish: Black anodised 10μm
Thickness: 1.5mm
Available in silver or black as standard.
Rear End Plate
Material: Acrylic
Finish: Black
Thickness: 3.0mm
Screws
No. 4 x 3/8” Posi-pan head Plastite self-tapping screws
Heatsink Kit
With the release of the Raspberry Pi4 the temperature of the processor under 100% usage has become an issue. When the processor gets too hot it throttles back which could compromise the application that the Pi is being used to perform.
As a solution we have developed a Heat Sinking Kit that consists of 2 aluminium blocks and adhesive pads that transfer the heat from the processor and the Ram chip to the aluminium carrier plate and then out to the enclosure, making the whole assembly a heat sink.
Temperature Test bench Test
We tested the Raspberry Pi4 running at 100% over a 10-minute period to register the temperature rise of the processor. The tests were performed with a bare board, one housed in a Raspberry Pi Foundation plastic enclosure, one in a Pi-Box Pro4 silver housing and one in a Pi-Box Pro4 black housing.
We saw a 19°C drop in operating temperature from 82°C in the bare board and plastic enclosure compared with the 63°C when housed in the Pi-Box Pro4 aluminium enclosure and heat kit.
Customisation
For alternative sizes, colour or number of units housed or for full customisation go to the customisation area of the website
Please note: Lincoln Binns does not supply the Raspberry Pi, any additional cables or power supplies
