RP3 19" Rack Solutions - Removable
RP3 19" Rack Solutions - Removable
As low as
£48.09
19" Rack solution for housing the Raspberry Pi 3.
- House the PI-Box Pro
- Standard and -NS versions
- 1, 2 or 3 units wide
- removable units
- Black anodised with brushed finish

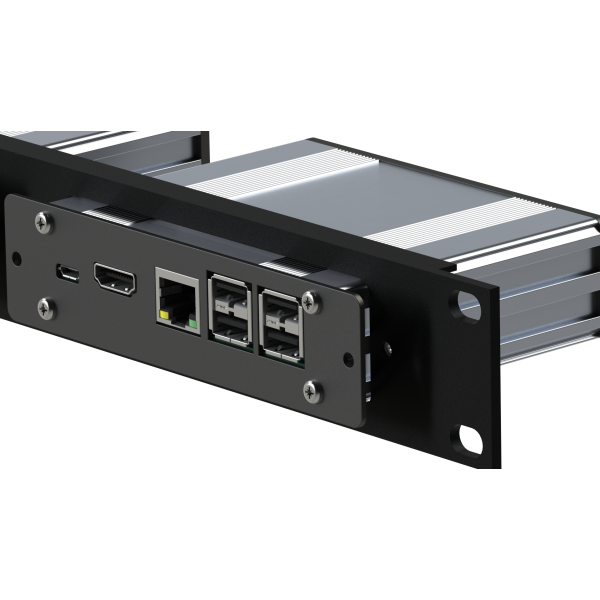

A 1U 19" extrusded aluminum rack panel milled to fit a removable PI-Box Pro unit(s).

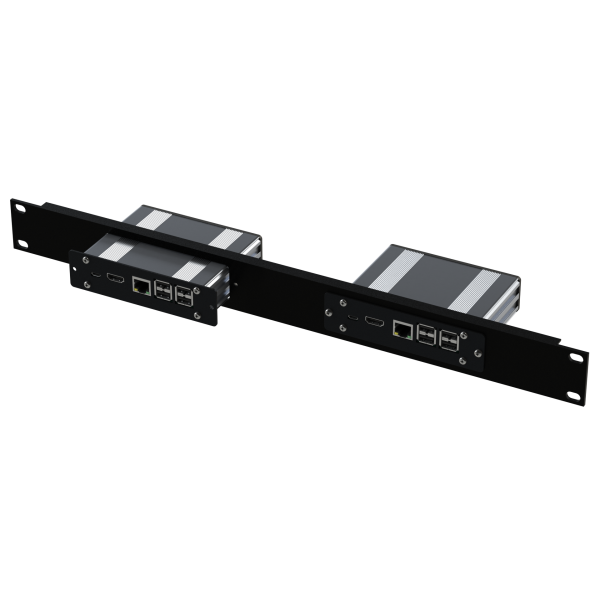

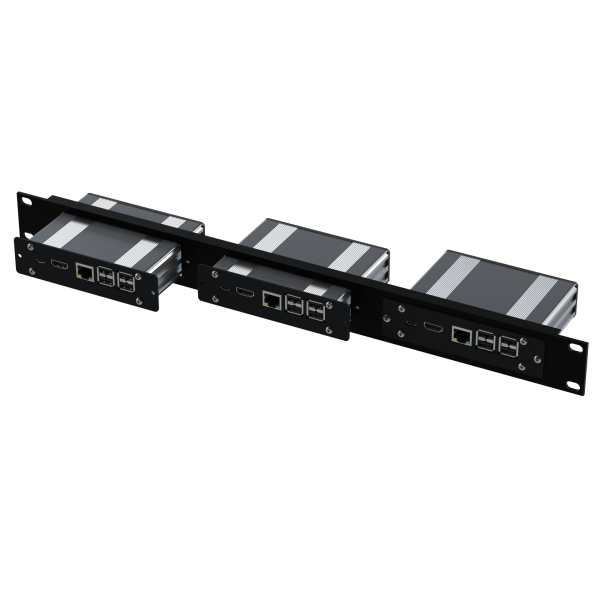

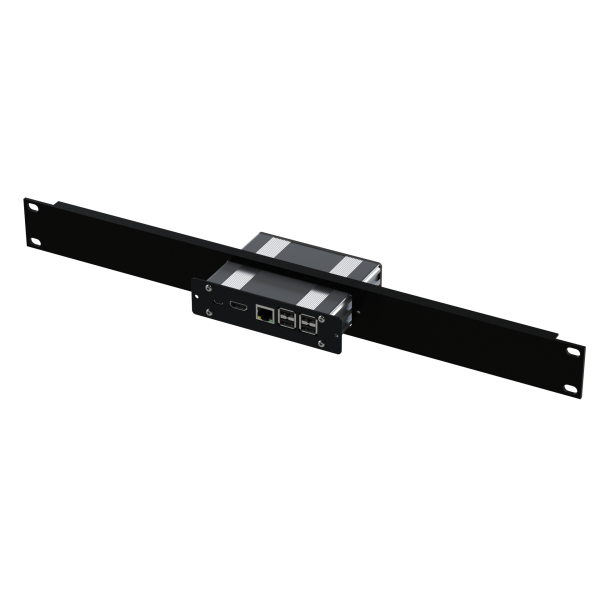

Available in 1, 2 or 3 unit versions.
Panels are anodised black with a brushed finish.
The Pi-Box Pro is and rugged industrial enclosure kit for the Raspberry Pi3. By utilising our HDMI extender board we can turn the power and HDMI connectors through 90° so the they are on the same plane as the ethernet and USB connectors.
The rear panel is made from 3mm acrylic and allows for communication via Bluetooth and Wi-Fi signals from the Pi3.
The standard version allows for access to the SD Card from the assembled enclosure and the -NS version contains the SD Card within the sealed enclosure
19" Rack Extruded Panel
Material: Aluminium 6063 T6 (HE9)
Finish: Black anodised 10μm - Brushed
Pi-Box Pro Extrusion
Material: Aluminium 6063 T6 (HE9)
Finish: Silver anodised 5μm
Pi-Box Pro Front End Plate
Material: Aluminium 5005 sheet
Finish: Black anodised 10μm
Thickness: 1.5mm
Rear End Plate
Material: Acrylic
Finish: Black
Thickness: 3.0mm
Customisation
For alternative colours or full customisation, including fitting a HAT, go to the customisation area of the website
Please note: Lincoln Binns does not supply the Raspberry Pi, any additional cables or power supplies
