Pi-Box Pro - POE (Pi 3)
Pi-Box Pro - POE (Pi 3)
As low as
£29.46
The Pi-Box Pro - POE comes with:
- Extender Board
- Carrier Plate
- E-Case B Extrusion
- Aluminium End Plate
- Acrylic End Plate (For WiFi & Bluetooth)
- Screws & Fixings

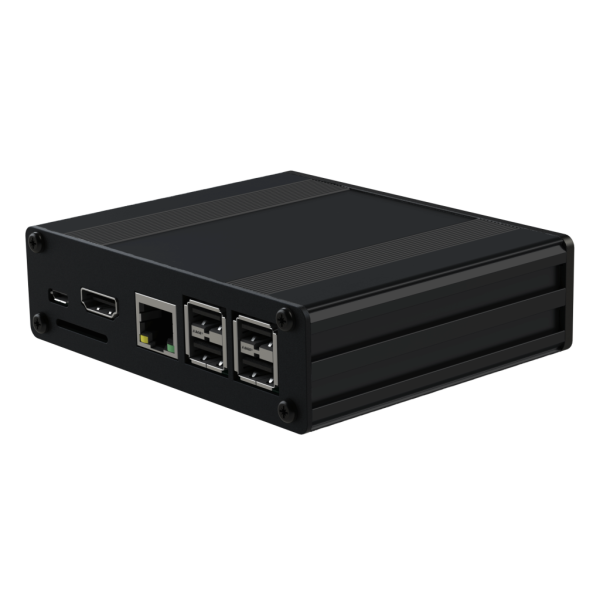

The Pi-Box Pro is and rugged industrial enclosure kit for the Raspberry Pi3. By utilising our HDMI extender board we can turn the power and HDMI connectors through 90° so the thay are on the same plane as the ethernet and USB connectors.
Additional venting has been added the front and rear panels to allow for air flow generated by the POE HAT.
The rear panel is made from 3mm acrilyc and allows for communication via bluetooth and Wi-Fi signals from the Pi3.
The standard version allows for access to the SD Card from the assembled enclosure and the -NS version contains the SD Card within the sealed enclosure.
Available in silver or black as standard.
Extrusion
Material: Aluminium 6063 T6 (HE9)
Finish: Silver anodised 5μm or black anodised 10μm
Front End Plate
Material: Aluminium 5005 sheet
Finish: Black anodised 10μm
Thickness: 1.5mm
Rear End Plate
Material: Acrylic
Finish: Black
Thickness: 3.0mm
Screws
No. 4 x 3/8” Posi-pan head Plastite self-tapping screws
Customisation
For alternative colours or full full cutomisation, including fitting a HAT, go to the customisation area of the website
Please note: Lincoln Binns does not supply the Raspberry Pi, POE HAT, or any additional cables or power supplies
