Pi-Box Pro - AV (Pi 3)
Pi-Box Pro - AV (Pi 3)
As low as
£36.95
The Pi-Box Pro - AV comes with:
- Extender Board
- AV Cable
- Carrier Plate
- E-Case B Extrusion
- Aluminium End Plate
- Acrylic End Plate (For WiFi & Bluetooth)
- Screws & Fixings

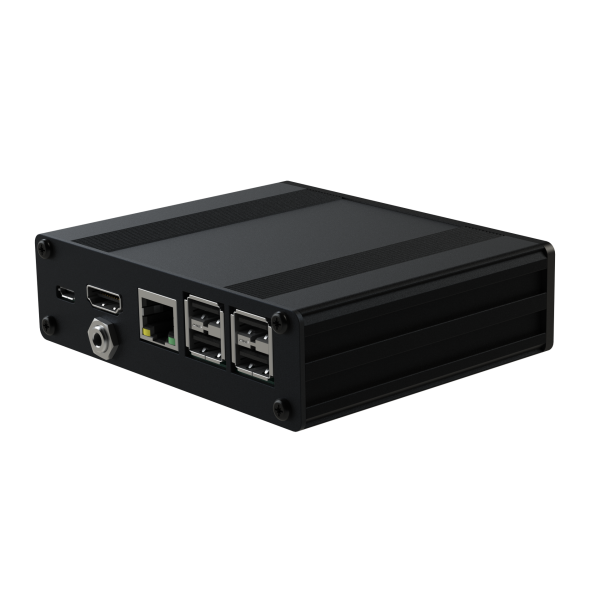

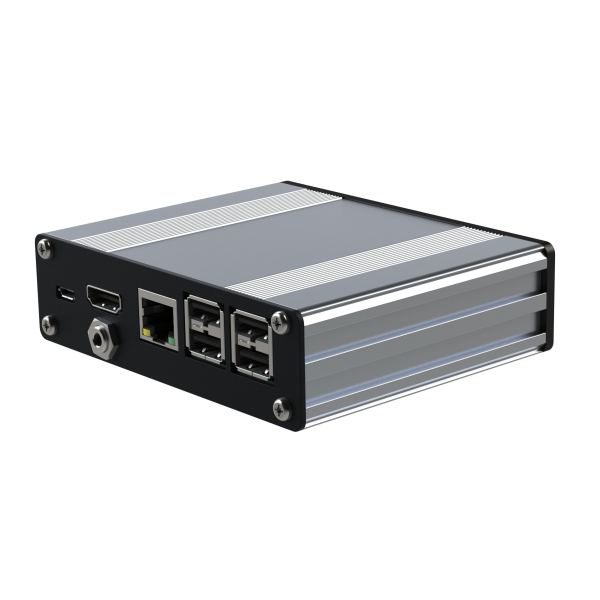

The Pi-Box Pro AV is and rugged industrial enclosure kit for the Raspberry Pi3. By utilising our HDMI extender board we can turn the power and HDMI connectors through 90° so the they are on the same plane as the ethernet and USB connectors. With the addition of an AV extension cable which takes the 4-pole 3mm jack connector to the front panel.
The rear panel is made from 3mm acrylic and allows for communication via bluetooth and Wi-Fi signals from the Pi3.
The standard version allows for access to the SD Card from the assembled enclosure and the -NS version contains the SD Card within the sealed enclosure.
Available in silver or black as standard.
Extrusion
Material: Aluminium 6063 T6 (HE9)
Finish: Silver anodised 5μm or black anodised 10μm
Front End Plate
Material: Aluminium 5005 sheet
Finish: Black anodised 10μm
Thickness: 1.5mm
Rear End Plate
Material: Acrylic
Finish: Black
Thickness: 3.0mm
Screws
No. 4 x 3/8” Posi-pan head Plastite self-tapping screws
Customisation
For alternative colours or full customisation, including fitting a HAT, go to the customisation area of the website
Please note: Lincoln Binns does not supply the Raspberry Pi, any additional cables or power supplies
