U-Case 1
U-Case 1
As low as
£8.38
- 1U (44.2mm) tall side extrusion
- 6 piece electronics case kit
- Pre-anodised silver
- Available in set sizes
- To suit 100, 128, 160 & 220mm wide boards
- In 80, 120, 160 & 220mm lengths

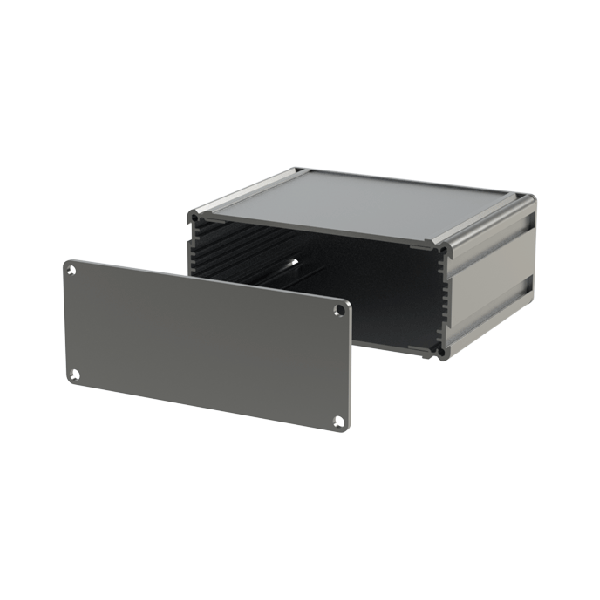

The U-Case range is a 6-piece electronics case kit in silver. Kit includes: 2x 1U/44.2mm tall side extrusions in fixed lengths, end plates, top and bottom plate and self tapping screws.
The maximum height of components on a board mounted in the bottom slot is 30mm. The outside of the box features a pair of dovetail slots which will accept multiple mounting options.
Available in cut lengths of 80mm, 120mm, 160mm or 220mm.
Available in set widths to suit 100mm, 128mm, 160mm and 220mm PCB's. Overall case width is board width + 8mm.
In silver - the cut edges of the extrusion are not anodised.
Extrusion
Material: Aluminium 6063 T6 (HE9)
Finish: Silver anodised 5μm
End Plates
Material: Aluminium 5005 sheet
Finish: Silver anodised 5μm
Thickness: 1.5mm
Top & Base Plates
Material: Aluminium 5005 sheet
Finish: Silver anodised 5μm
Thickness: 2.0mm
Screws
No. 4 x 3/8” Posi-pan head Plastite self-tapping screws
Accessories (not included in kit)
For alternative lengths, colours or for full customisation go to the customisation area of the website
U-Case 1 Dimensioned DXF*
U-Case 1v2 Extrusion.STEP*
