E-Case D Enclosure Kit

Extruded aluminium enclosure E-Case D height

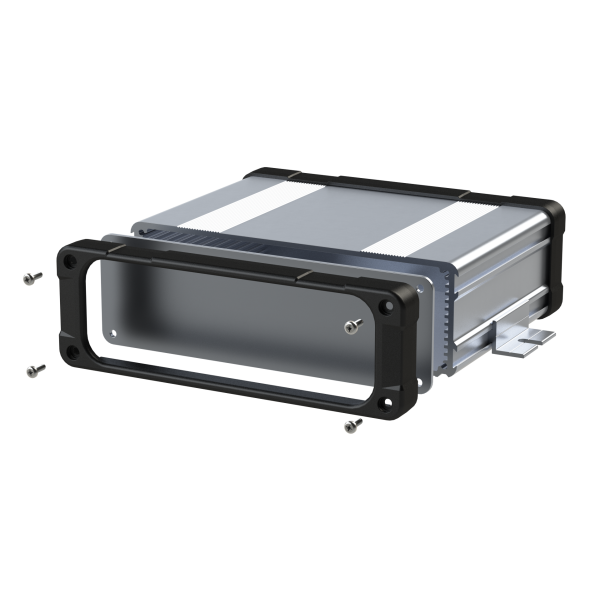

Extruded aluminium enclosure E-Case D Kit and accessories

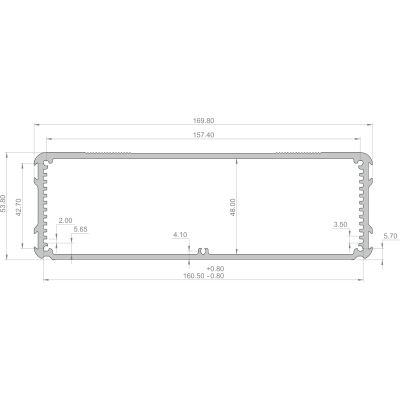

Extruded aluminium enclosure E-Case D dimensions

E-Case D Enclosure Kit

From £13.68

To £70.39

  • Extrusion
  • Endplates
  • Screws
  • Bezel
  • Mounting Options
  • Rubber Feet
Customize E-Case D Enclosure Kit
  • Buy 10 for £14.08 each and save 10%
  • Buy 50 for £13.29 each and save 15%
  • Buy 100 for £12.90 each and save 18%
  • Buy 500 for £12.51 each and save 20%
  • Buy 1000 for £12.12 each and save 23%
  • Buy 2500 for £11.73 each and save 25%
  • Buy 10 for £12.31 each and save 10%
  • Buy 50 for £11.63 each and save 15%
  • Buy 100 for £11.29 each and save 17%
  • Buy 500 for £10.94 each and save 20%
  • Buy 1000 for £10.60 each and save 23%
  • Buy 2500 for £10.26 each and save 25%
  • Buy 10 for £25.40 each and save 10%
  • Buy 50 for £23.99 each and save 15%
  • Buy 100 for £23.28 each and save 18%
  • Buy 500 for £22.58 each and save 20%
  • Buy 1000 for £21.87 each and save 23%
  • Buy 2500 for £21.17 each and save 25%
  • Buy 10 for £21.38 each and save 10%
  • Buy 50 for £20.19 each and save 15%
  • Buy 100 for £19.59 each and save 18%
  • Buy 500 for £19.00 each and save 20%
  • Buy 1000 for £18.41 each and save 22%
  • Buy 2500 for £17.81 each and save 25%
  • Buy 10 for £34.00 each and save 10%
  • Buy 50 for £32.11 each and save 15%
  • Buy 100 for £31.17 each and save 17%
  • Buy 500 for £30.22 each and save 20%
  • Buy 1000 for £29.28 each and save 22%
  • Buy 2500 for £28.34 each and save 25%
  • Buy 10 for £28.31 each and save 10%
  • Buy 50 for £26.73 each and save 15%
  • Buy 100 for £25.95 each and save 17%
  • Buy 500 for £25.16 each and save 20%
  • Buy 1000 for £24.37 each and save 23%
  • Buy 2500 for £23.59 each and save 25%
  • Buy 10 for £2.44 each and save 10%
  • Buy 50 for £2.30 each and save 15%
  • Buy 100 for £2.24 each and save 17%
  • Buy 500 for £2.17 each and save 20%
  • Buy 1000 for £2.10 each and save 23%
  • Buy 2500 for £2.03 each and save 25%
  • Buy 10 for £4.28 each and save 10%
  • Buy 50 for £4.04 each and save 15%
  • Buy 100 for £3.92 each and save 17%
  • Buy 500 for £3.80 each and save 20%
  • Buy 1000 for £3.68 each and save 23%
  • Buy 2500 for £3.56 each and save 25%
  • Buy 10 for £4.28 each and save 10%
  • Buy 50 for £4.04 each and save 15%
  • Buy 100 for £3.92 each and save 17%
  • Buy 500 for £3.80 each and save 20%
  • Buy 1000 for £3.68 each and save 23%
  • Buy 2500 for £3.56 each and save 25%
  • Buy 10 for £0.42 each and save 11%
  • Buy 50 for £0.40 each and save 15%
  • Buy 100 for £0.39 each and save 17%
  • Buy 500 for £0.38 each and save 19%
  • Buy 1000 for £0.36 each and save 23%
  • Buy 2500 for £0.35 each and save 26%
  • Buy 10 for £0.40 each and save 9%
  • Buy 50 for £0.37 each and save 16%
  • Buy 100 for £0.36 each and save 18%
  • Buy 500 for £0.35 each and save 20%
  • Buy 1000 for £0.34 each and save 23%
  • Buy 2500 for £0.33 each and save 25%
  • Buy 10 for £0.95 each and save 10%
  • Buy 50 for £0.90 each and save 15%
  • Buy 100 for £0.87 each and save 18%
  • Buy 500 for £0.85 each and save 20%
  • Buy 1000 for £0.82 each and save 23%
  • Buy 2500 for £0.80 each and save 25%
  • Buy 10 for £0.83 each and save 10%
  • Buy 50 for £0.78 each and save 15%
  • Buy 100 for £0.76 each and save 17%
  • Buy 500 for £0.74 each and save 20%
  • Buy 1000 for £0.71 each and save 23%
  • Buy 2500 for £0.69 each and save 25%
  • Buy 10 for £1.81 each and save 10%
  • Buy 50 for £1.71 each and save 15%
  • Buy 100 for £1.66 each and save 17%
  • Buy 500 for £1.61 each and save 20%
  • Buy 1000 for £1.56 each and save 22%
  • Buy 2500 for £1.51 each and save 25%
  • Buy 10 for £2.36 each and save 10%
  • Buy 50 for £2.23 each and save 15%
  • Buy 100 for £2.16 each and save 18%
  • Buy 500 for £2.10 each and save 20%
  • Buy 1000 for £2.03 each and save 23%
  • Buy 2500 for £1.97 each and save 25%
  • Buy 10 for £12.58 each and save 10%
  • Buy 50 for £11.88 each and save 15%
  • Buy 100 for £11.53 each and save 18%
  • Buy 500 for £11.18 each and save 20%
  • Buy 1000 for £10.83 each and save 23%
  • Buy 2500 for £10.49 each and save 25%
  • Buy 10 for £5.06 each and save 10%
  • Buy 50 for £4.78 each and save 15%
  • Buy 100 for £4.64 each and save 17%
  • Buy 500 for £4.50 each and save 20%
  • Buy 1000 for £4.36 each and save 22%
  • Buy 2500 for £4.22 each and save 25%
  • Buy 10 for £3.82 each and save 10%
  • Buy 50 for £3.60 each and save 15%
  • Buy 100 for £3.50 each and save 17%
  • Buy 500 for £3.39 each and save 20%
  • Buy 1000 for £3.29 each and save 22%
  • Buy 2500 for £3.18 each and save 25%
  • Buy 10 for £2.66 each and save 10%
  • Buy 50 for £2.52 each and save 15%
  • Buy 100 for £2.44 each and save 18%
  • Buy 500 for £2.37 each and save 20%
  • Buy 1000 for £2.29 each and save 23%
  • Buy 2500 for £2.22 each and save 25%
  • Buy 10 for £1.26 each and save 10%
  • Buy 50 for £1.19 each and save 15%
  • Buy 100 for £1.16 each and save 17%
  • Buy 500 for £1.12 each and save 20%
  • Buy 1000 for £1.09 each and save 22%
  • Buy 2500 for £1.05 each and save 25%
  • Buy 10 for £0.74 each and save 10%
  • Buy 50 for £0.70 each and save 15%
  • Buy 100 for £0.68 each and save 17%
  • Buy 500 for £0.66 each and save 20%
  • Buy 1000 for £0.64 each and save 22%
  • Buy 2500 for £0.62 each and save 24%
  • Buy 10 for £1.72 each and save 10%
  • Buy 50 for £1.62 each and save 15%
  • Buy 100 for £1.58 each and save 17%
  • Buy 500 for £1.53 each and save 20%
  • Buy 1000 for £1.48 each and save 23%
  • Buy 2500 for £1.43 each and save 25%
  • Buy 10 for £0.90 each and save 10%
  • Buy 50 for £0.85 each and save 15%
  • Buy 100 for £0.83 each and save 17%
  • Buy 500 for £0.80 each and save 20%
  • Buy 1000 for £0.78 each and save 22%
  • Buy 2500 for £0.75 each and save 25%
  • Buy 10 for £2.84 each and save 10%
  • Buy 50 for £2.69 each and save 15%
  • Buy 100 for £2.61 each and save 17%
  • Buy 500 for £2.53 each and save 20%
  • Buy 1000 for £2.45 each and save 22%
  • Buy 2000 for £2.37 each and save 25%
  • Buy 10 for £3.65 each and save 10%
  • Buy 50 for £3.44 each and save 15%
  • Buy 100 for £3.34 each and save 18%
  • Buy 500 for £3.24 each and save 20%
  • Buy 1000 for £3.14 each and save 22%
  • Buy 2500 for £3.04 each and save 25%

* Required Fields

Your Customization

    £13.68

    - +
    Add to Compare

    The E-Case D Enclosure Kit consists of all of the options needed to make a complete enclosure. The kit includes extrusion, end plates, screws, bezels, mounting options and rubber feet.

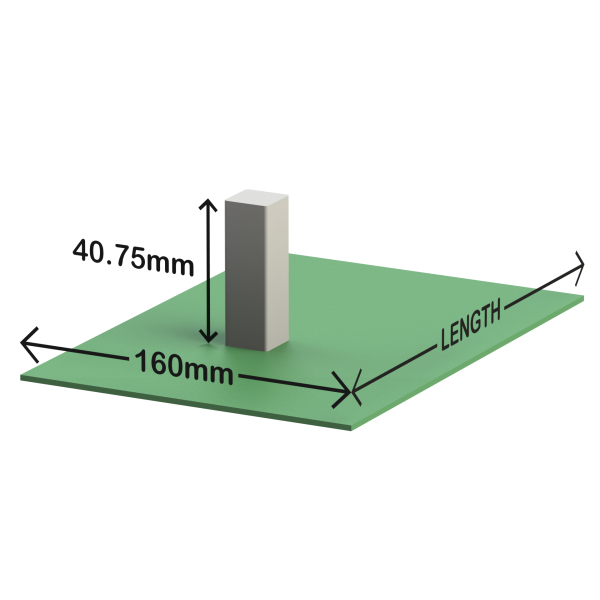

    The maximum height of components on a board mounted in the bottom slot is 40.75mm. The outside of the box features a pair of dovetail slots which will accept multiple mounting options.

    Available in cut lengths of 80mm, 160mm or 220mm.

    Designed to fit a 160mm wide PCB.

    In silver or black - the cut edges of the extrusion are not anodised.

    Extrusion

    Material: Aluminium 6063 T6 (HE9)

    Finish: Silver anodised 5μm or black anodised 10μm

    End Plates

    Material: Aluminium 5005 sheet

    Finish: Silver anodised 5μm or black anodised 10μm

    Thickness: 2.0mm

    Screws

    No. 4 x 3/8” Posi-pan head Plastite self-tapping screws

    Accessories Available in kit

    End Plates

    Bezels

    Carrier Plates

    Screws

    Rubber Feet

    Customisation

    If you require a fully customised enclosure including cut-outs and artwork, go to the customisation area of the website.

    Mounting Options include:

    Clip-on Brackets

    DIN Rail Clip

    Linc-Lugs

    VESA Mount Bracket

    Bent End Plate Bracket



    pdf
    E-Case
    dxf
    E-Case D
    Dimensioned DXF
    pdf
    E-Case D - Dimensions
    Dimensioned Drawing - PDF
    step
    E-Case D - STEP File*
    3D Model
    pdf
    E-Case D Print Area
    * You have to Login or Register to download this file
