E-Case A

E-Case A

As low as £3.47
  • Fits a 55mm wide PCB or carrier plate
  • Cut lengths: 40mm, 80mm or 120mm
  • Material: Aluminium 6063 T6
  • Cut tolerance: -0mm / +0.5mm
  • Maximum height of components is 18.6mm
  • Weight: 1.0kg/m
- +

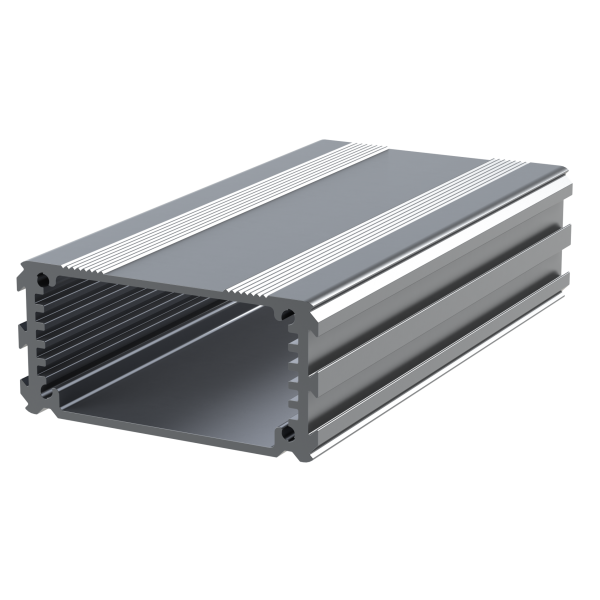

The E-Case A is an extruded aluminium enclosure box section that has been designed to fit a 55mm wide PCB or carrier plate.

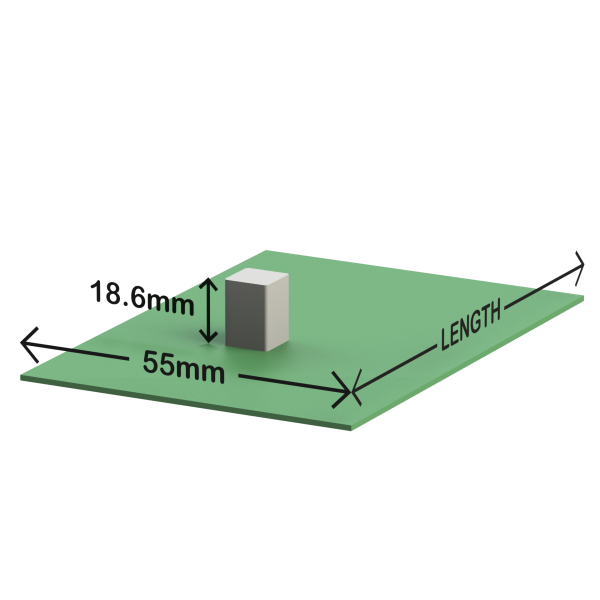

The maximum height of components on a board mounted in the bottom slot is 18.6mm.

Available in cut lengths of 40mm, 80mm or 120mm.

In silver or pre-anodised in black - the cut edges of the extrusion are not anodised.

For alternative lengths, colours or for full customisation go to the customisation area of the website

dxf
Dimensioned DXF
pdf

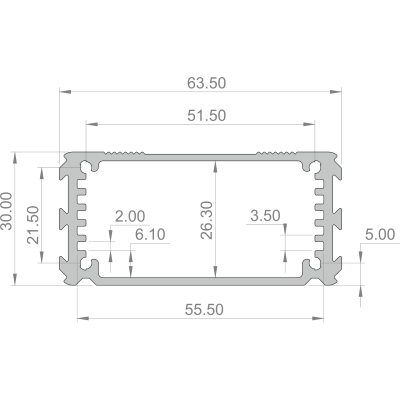

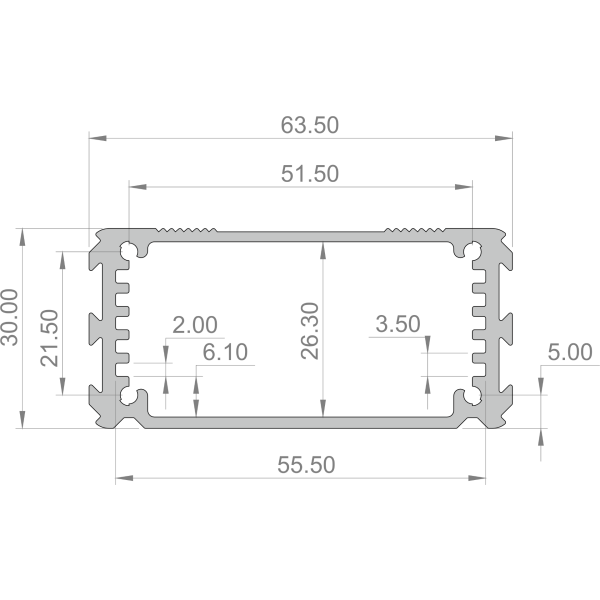

Dimensioned Drawing - PDF
step
3D Model
* You have to Login or Register to download this file
