E-Case A Enclosure Kit

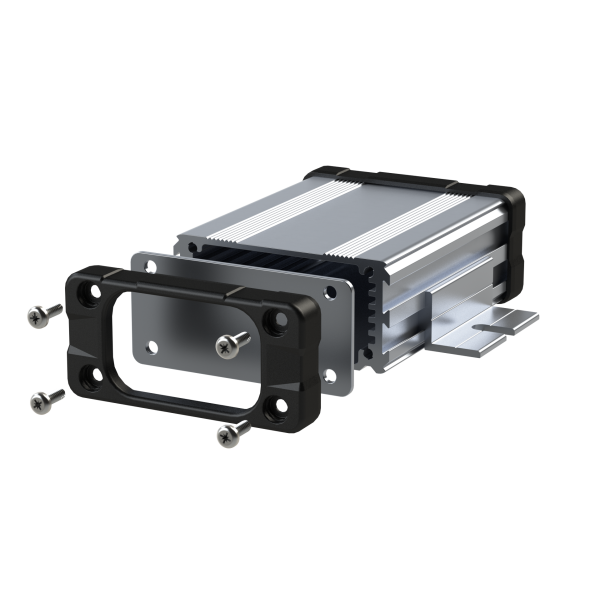

E-Case A Aluminium Enclosure Kit with accessories

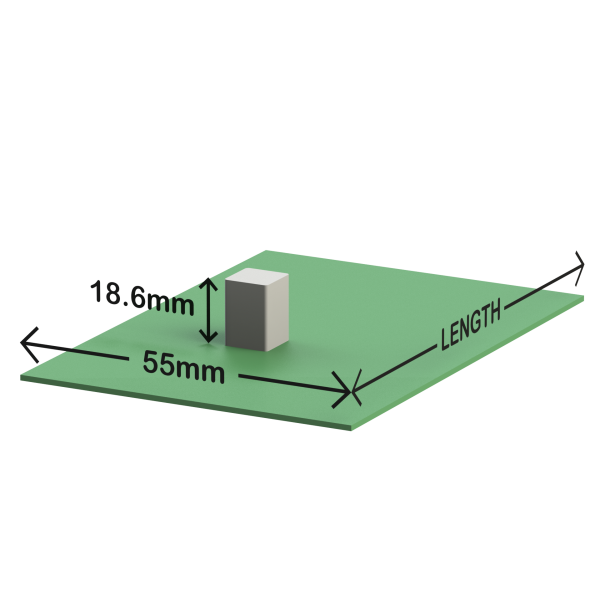

E-Case A PCB dimensions

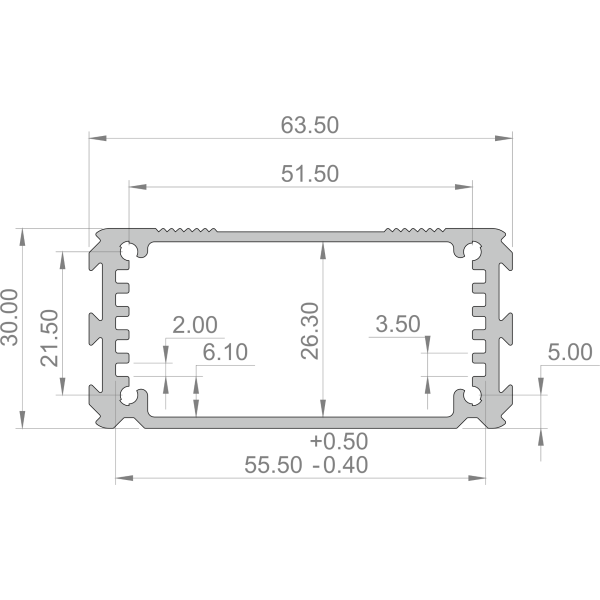

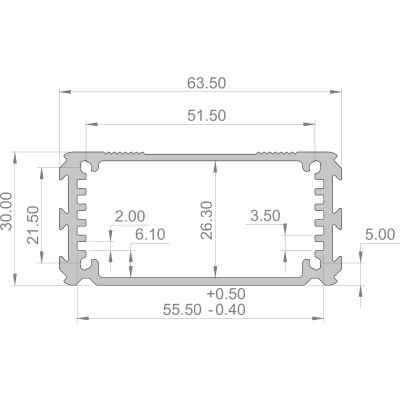

E-Case A Enclosure Dimensions

E-Case A Enclosure Kit

From £3.68

To £34.49

  • Extrusion
  • Endplates
  • Screws
  • Bezel
  • Mounting Options
  • Rubber Feet
Customize E-Case A Enclosure Kit
  • Buy 10 for £4.43 each and save 10%
  • Buy 50 for £4.18 each and save 15%
  • Buy 100 for £4.06 each and save 17%
  • Buy 500 for £3.94 each and save 20%
  • Buy 1000 for £3.81 each and save 23%
  • Buy 2500 for £3.69 each and save 25%
  • Buy 10 for £6.66 each and save 10%
  • Buy 50 for £6.29 each and save 15%
  • Buy 100 for £6.11 each and save 17%
  • Buy 500 for £5.92 each and save 20%
  • Buy 1000 for £5.74 each and save 22%
  • Buy 2500 for £5.55 each and save 25%
  • Buy 10 for £8.77 each and save 10%
  • Buy 50 for £8.28 each and save 15%
  • Buy 100 for £8.04 each and save 17%
  • Buy 500 for £7.79 each and save 20%
  • Buy 1000 for £7.55 each and save 22%
  • Buy 2500 for £7.31 each and save 25%
  • Buy 10 for £3.31 each and save 10%
  • Buy 50 for £3.13 each and save 15%
  • Buy 100 for £3.04 each and save 17%
  • Buy 500 for £2.94 each and save 20%
  • Buy 1000 for £2.85 each and save 23%
  • Buy 2500 for £2.76 each and save 25%
  • Buy 10 for £4.89 each and save 10%
  • Buy 50 for £4.62 each and save 15%
  • Buy 100 for £4.48 each and save 17%
  • Buy 500 for £4.34 each and save 20%
  • Buy 1000 for £4.21 each and save 22%
  • Buy 2500 for £4.07 each and save 25%
  • Buy 10 for £6.44 each and save 10%
  • Buy 50 for £6.09 each and save 15%
  • Buy 100 for £5.91 each and save 17%
  • Buy 500 for £5.73 each and save 20%
  • Buy 1000 for £5.55 each and save 22%
  • Buy 2500 for £5.37 each and save 25%
  • Buy 10 for £1.40 each and save 10%
  • Buy 50 for £1.33 each and save 15%
  • Buy 100 for £1.29 each and save 17%
  • Buy 500 for £1.25 each and save 20%
  • Buy 1000 for £1.21 each and save 22%
  • Buy 2500 for £1.17 each and save 25%
  • Buy 10 for £1.40 each and save 10%
  • Buy 50 for £1.33 each and save 15%
  • Buy 100 for £1.29 each and save 17%
  • Buy 500 for £1.25 each and save 20%
  • Buy 1000 for £1.21 each and save 22%
  • Buy 2500 for £1.17 each and save 25%
  • Buy 10 for £0.67 each and save 9%
  • Buy 50 for £0.63 each and save 15%
  • Buy 100 for £0.61 each and save 18%
  • Buy 500 for £0.59 each and save 20%
  • Buy 1000 for £0.57 each and save 23%
  • Buy 2500 for £0.56 each and save 24%
  • Buy 10 for £0.45 each and save 10%
  • Buy 50 for £0.43 each and save 14%
  • Buy 100 for £0.41 each and save 18%
  • Buy 500 for £0.40 each and save 20%
  • Buy 1000 for £0.39 each and save 22%
  • Buy 2500 for £0.38 each and save 24%
  • Buy 10 for £0.42 each and save 11%
  • Buy 50 for £0.40 each and save 15%
  • Buy 100 for £0.39 each and save 17%
  • Buy 500 for £0.38 each and save 19%
  • Buy 1000 for £0.36 each and save 23%
  • Buy 2500 for £0.35 each and save 26%
  • Buy 10 for £1.01 each and save 10%
  • Buy 50 for £0.95 each and save 15%
  • Buy 100 for £0.92 each and save 18%
  • Buy 500 for £0.90 each and save 20%
  • Buy 1000 for £0.87 each and save 22%
  • Buy 2500 for £0.84 each and save 25%
  • Buy 10 for £0.88 each and save 10%
  • Buy 50 for £0.83 each and save 15%
  • Buy 100 for £0.81 each and save 17%
  • Buy 500 for £0.78 each and save 20%
  • Buy 1000 for £0.76 each and save 22%
  • Buy 2500 for £0.74 each and save 24%
  • Buy 10 for £0.74 each and save 10%
  • Buy 50 for £0.70 each and save 15%
  • Buy 100 for £0.68 each and save 17%
  • Buy 500 for £0.66 each and save 20%
  • Buy 1000 for £0.64 each and save 22%
  • Buy 2500 for £0.62 each and save 24%
  • Buy 10 for £2.50 each and save 10%
  • Buy 50 for £2.36 each and save 15%
  • Buy 100 for £2.29 each and save 18%
  • Buy 500 for £2.22 each and save 20%
  • Buy 1000 for £2.15 each and save 23%
  • Buy 2500 for £2.09 each and save 25%
  • Buy 10 for £13.34 each and save 10%
  • Buy 50 for £12.60 each and save 15%
  • Buy 100 for £12.23 each and save 17%
  • Buy 500 for £11.86 each and save 20%
  • Buy 1000 for £11.49 each and save 22%
  • Buy 2500 for £11.12 each and save 25%
  • Buy 10 for £5.36 each and save 10%
  • Buy 50 for £5.07 each and save 15%
  • Buy 100 for £4.92 each and save 17%
  • Buy 500 for £4.77 each and save 20%
  • Buy 1000 for £4.62 each and save 22%
  • Buy 2500 for £4.47 each and save 25%
  • Buy 10 for £4.04 each and save 10%
  • Buy 50 for £3.82 each and save 15%
  • Buy 100 for £3.70 each and save 18%
  • Buy 500 for £3.59 each and save 20%
  • Buy 1000 for £3.48 each and save 22%
  • Buy 2500 for £3.37 each and save 25%
  • Buy 10 for £2.82 each and save 10%
  • Buy 50 for £2.66 each and save 15%
  • Buy 100 for £2.58 each and save 18%
  • Buy 500 for £2.50 each and save 20%
  • Buy 1000 for £2.43 each and save 22%
  • Buy 2500 for £2.35 each and save 25%
  • Buy 10 for £1.34 each and save 10%
  • Buy 50 for £1.27 each and save 15%
  • Buy 100 for £1.23 each and save 17%
  • Buy 500 for £1.19 each and save 20%
  • Buy 1000 for £1.15 each and save 23%
  • Buy 2500 for £1.12 each and save 25%
  • Buy 10 for £0.78 each and save 10%
  • Buy 50 for £0.74 each and save 15%
  • Buy 100 for £0.72 each and save 17%
  • Buy 500 for £0.70 each and save 20%
  • Buy 1000 for £0.67 each and save 23%
  • Buy 2500 for £0.65 each and save 25%
  • Buy 10 for £1.84 each and save 10%
  • Buy 50 for £1.73 each and save 15%
  • Buy 100 for £1.68 each and save 18%
  • Buy 500 for £1.63 each and save 20%
  • Buy 1000 for £1.58 each and save 23%
  • Buy 2500 for £1.53 each and save 25%
  • Buy 10 for £0.96 each and save 10%
  • Buy 50 for £0.91 each and save 15%
  • Buy 100 for £0.88 each and save 18%
  • Buy 500 for £0.86 each and save 20%
  • Buy 1000 for £0.83 each and save 22%
  • Buy 2500 for £0.80 each and save 25%
  • Buy 10 for £3.02 each and save 10%
  • Buy 50 for £2.85 each and save 15%
  • Buy 100 for £2.76 each and save 18%
  • Buy 500 for £2.68 each and save 20%
  • Buy 1000 for £2.60 each and save 22%
  • Buy 2000 for £2.51 each and save 25%
  • Buy 10 for £3.65 each and save 10%
  • Buy 50 for £3.44 each and save 15%
  • Buy 100 for £3.34 each and save 18%
  • Buy 500 for £3.24 each and save 20%
  • Buy 1000 for £3.14 each and save 22%
  • Buy 2500 for £3.04 each and save 25%

* Required Fields

Your Customization

    £3.68

    - +
    Add to Compare

    The E-Case A Enclosure Kit consists of all of the options needed to make a complete enclosure. The kit includes extrusion, end plates, screws, bezels, mounting options and rubber feet.

    The maximum height of components on a board mounted in the bottom slot is 18mm. The outside of the box features a pair of dovetail slots which will accept multiple mounting options.

    Available in cut lengths of 40mm, 80mm or 120mm.

    Designed to fit a 55mm wide PCB.

    In silver or black - the cut edges of the extrusion are not anodised.

    Extrusion

    Material: Aluminium 6063 T6 (HE9)

    Finish: Silver anodised 5μm or black anodised 10μm

    End Plates

    Material: Aluminium 5005 sheet

    Finish: Silver anodised 5μm or black anodised 10μm

    Thickness: 1.5mm

    Screws

    No. 4 x 3/8” Posi-pan head Plastite self-tapping screws

    Accessories Available in kit

    End Plates

    Bezels

    Carrier Plates

    Screws

    Rubber Feet

    Customisation

    If you require a fully customised enclosure including cut-outs and artwork, go to the customisation area of the website.

    Mounting Options include:

    Clip-on Brackets

    DIN Rail Clip

    Linc-Lugs

    VESA Mount Bracket

    Bent End Plate Bracket



    pdf
    E-Case
    pdf
    E-Case A Dimensioned
    dxf
    E-Case A Dimensioned DXF*
    pdf
    E-Case A Print Area
    step
    EAS80.STEP*
    * You have to Login or Register to download this file
