19″ Rack Enclosure

19″ Rack Enclosure

As low as £56.11

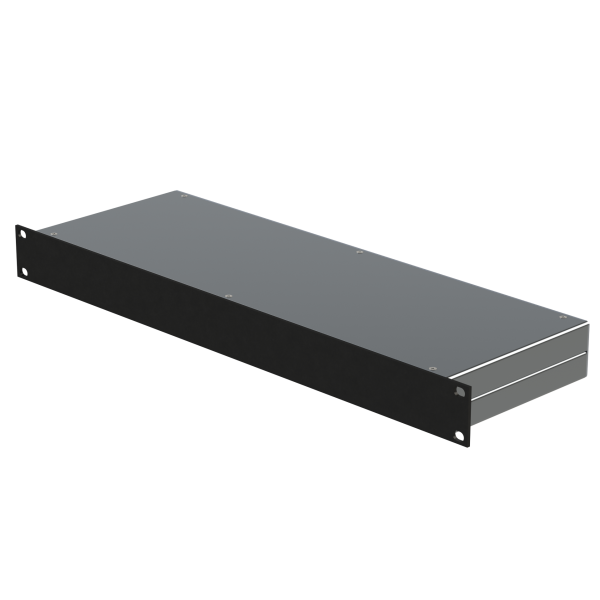

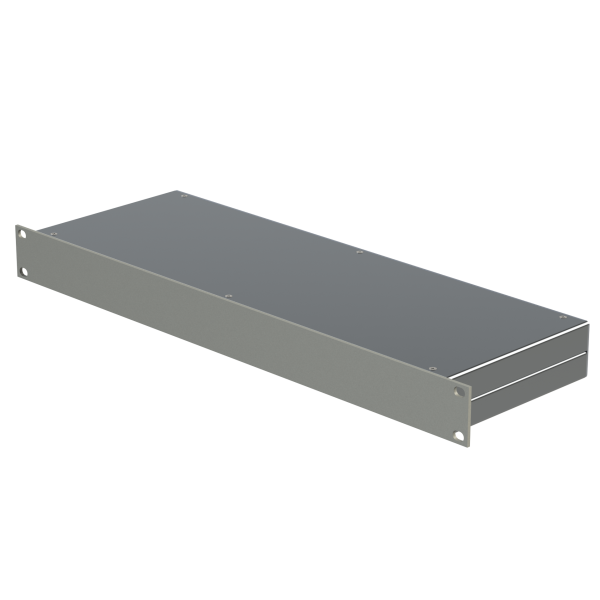

  • A range of 19" rack enclosures
  • 1U with 100, 150 or 250mm deep case
  • Silver or Black Front
  • Front, top and base are clear anodised
- +

The range of 19" rack mount enclosures are manufactured from aluminium, using an extruded section for the front and the rear and formed sheet for the top and the base covers.

Available in 1U with 100, 150 and 250mm depths as standard.

Front panels are available in silver or black anodise.

The rear, top and the base are clear anodised


Holt_Exploded_Black_1U_Rack_Box_150mm_pic1

Front Panel:

Extruded Aluminium

Thickness: 2.8mm

Finish: Anodised - Silver or Black

Rear Panel:

Extruded Aliminium

Thickness: 1.8mm

Finish: Silver anodised

Enclosure Body:

  • The bottom half incorporates a joggle, so that the two halves overlap to provide extra rigidity
  • Improved EMC performance as result of the incorporation of the joggle

For alternative sizes and colours or for full customisation go to the customisation area of the website
