Combi-Case 100 Kit - 58mm
Combi-Case 100 Kit - 58mm
As low as
£17.42
- Fits a 100mm wide PCB or carrier plate
- Cut lengths: 80mm, 160mm or 220mm
- Material: Aluminium 6063 T6
- Cut tolerance: -0mm / +0.5mm
- Maximum height of components is 47.6mm
- Weight: 2.61kg/m

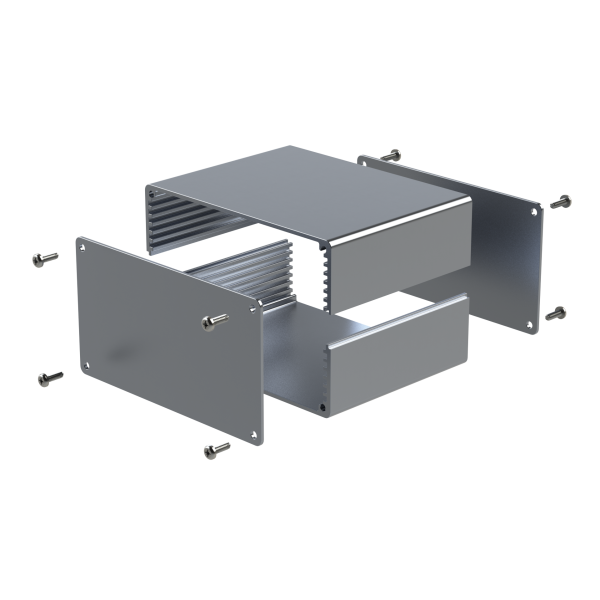

The Combi Case 100 - 58mm Enclosure Kit consists of all of the options needed to make a complete enclosure. The kit includes top and base extrusion, end plates and screws.

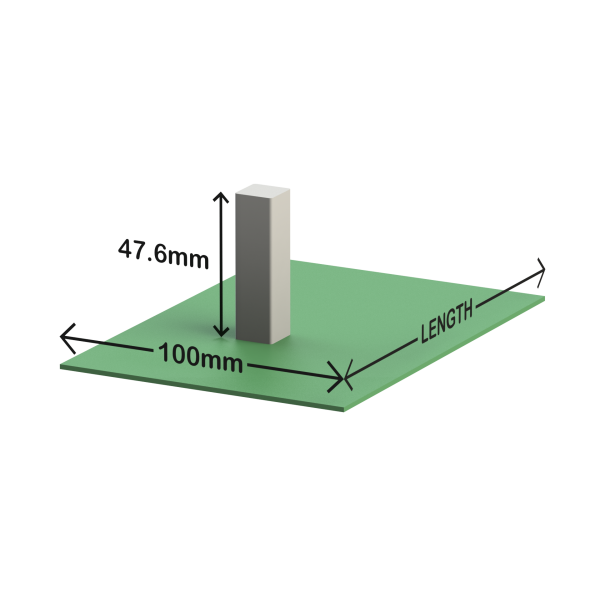

The maximum height of components on a board mounted in the bottom slot is 47.6mm.
Available in cut lengths of 80mm, 160mm or 220mm.
Designed to fit a 100mm wide PCB.
In silver or black - the cut edges of the extrusion are not anodised
Extrusion
Material: Aluminium 6063 T6 (HE9)
Finish: Silver anodised 5μm or black anodised 10μm
End Plates
Material: Aluminium 5005 sheet
Finish: Silver anodised 5μm or black anodised 10μm
Thickness: 1.5mm
Screws
No. 4 x 3/8” Posi-pan head Plastite self-tapping screws
Accessories (not included in kit)
For alternative lengths, colours or for full customisation go to the customisation area of the website
Combi-Case 29 & 29 80mm silver STEP*

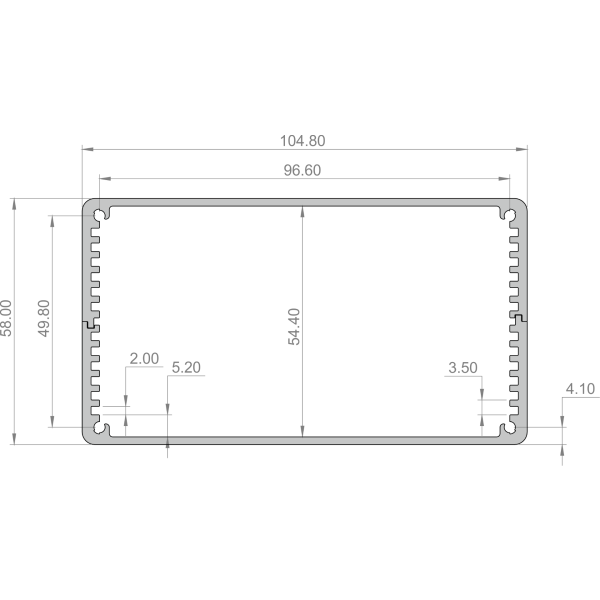

Combi-Case 29 & 29 box dims DXF*
