Uniobox 3

As low as £10.82
In stock
SKU
uniobox-3
  • 3U (120mm) tall extrusion
  • 6 piece enclosure kit
  • Pre-anodised silver
  • Available in set sizes
  • To suit 100, 128, 160 and 220mm wide boards
  • In 80, 120, 160 and 220mm lengths

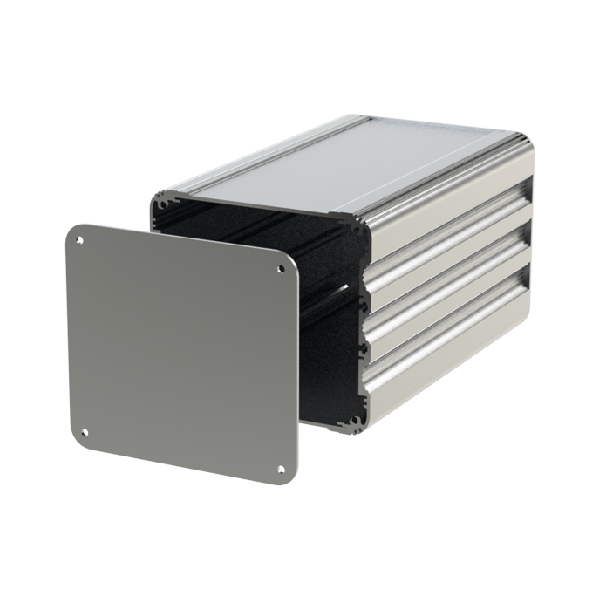

The UnioBox 3 range is a 6-piece enclosure kit, with 3U (120mm) tall side extrusions in fixed lengths. A set size of front panel and matching top and base panels to make a variety of size combinations.

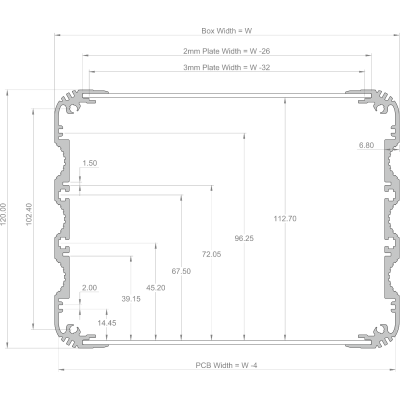

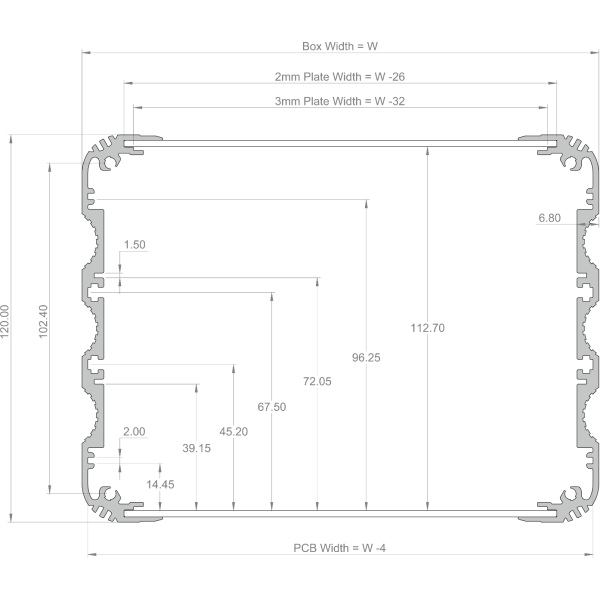

The maximum height of components on a board mounted in the bottom slot is 89mm.

Available in cut lengths of 80mm, 120mm, 160mm or 220mm.

Available in set widths to suit 100mm, 128mm, 160mm and 220mm

In Silver, clear anodise - the cut edges of the extrusion are not anodised.

For alternative lengths, colours or for full customisation go to the customisation area of the website

dxf
Dimensioned DXF
pdf
Dimensioned PDF
step
3D Model
* You have to Login or Register to download this file
Download Datasheet Download Datasheet
