Pi-Box Pro 4
Pi-Box Pro 4
As low as
£31.44
The Pi-Box Pro 4 comes with:
- Extender Board
- Carrier Plate
- E-Case B Extrusion
- Aluminium End Plate
- Acrylic End Plate (For WiFi & Bluetooth)
- Screws & Fixings

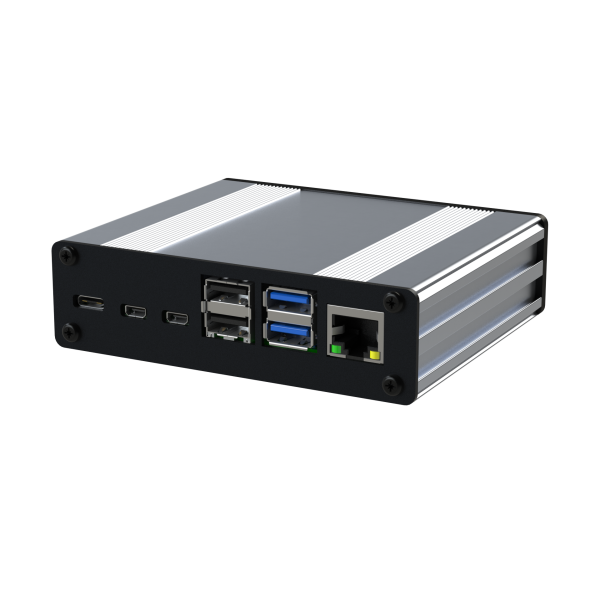

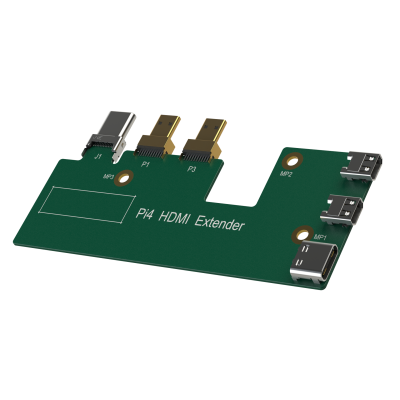

The Pi-Box Pro 4 is a rugged industrial enclosure kit for the Raspberry Pi4. By utilising our micro HDMI Pi4 extender board we can turn the power and micro HDMI connectors through 90° so the they are on the same plane as the Ethernet and USB connectors.
A heatsink kit has been developed and can be order as an option if required.
The rear panel is made from 3mm acrylic and allows for communication via Bluetooth and Wi-Fi signals from the Pi4.
The standard version allows for access to the SD Card from the assembled enclosure and the -NS version contains the SD Card within the sealed enclosure.

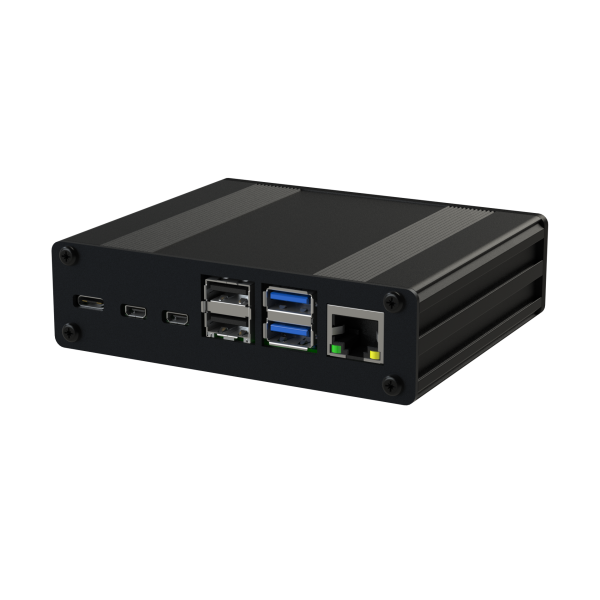

Available in silver or black as standard.
Extrusion
Material: Aluminium 6063 T6 (HE9)
Finish: Silver anodised 5μm or black anodised 10μm
Front End Plate
Material: Aluminium 5005 sheet
Finish: Black anodised 10μm
Thickness: 1.5mm
Available in black as standard.
Rear End Plate
Material: Acrylic
Finish: Black
Thickness: 3.0mm
Screws
No. 4 x 3/8” Posi-pan head Plastite self-tapping screws
Customisation
For alternative colours or full customisation, including fitting a HAT, go to the customisation area of the website
Please note: Lincoln Binns does not supply the Raspberry Pi, any additional cables or power supplies
