Pi-Box Pro 5 M.2

Pi-Box Pro 5 M.2

£37.96

The Pi-Box Pro 5 M2 comes with:

  • Extender Board
  • Carrier Plate - cut to accomodate the Raspberry Pi Active Cooler
  • E-Case C Extrusion
  • Aluminium End Plate
  • Acrylic End Plate (For WiFi & Bluetooth)
  • Screws & Fixings & GPIO Extender



LB-Enclosures does not supply the Raspberry Pi, ACtive Cooler, M2 HAT or modules

Raspberry_Pi_5_COLOUR_CMYK
- +

The Pi-Box Pro 5 is a rugged industrial enclosure kit for the Raspberry Pi5. By utilising our Pi HDMI Pi4/5 extender board we can turn the power and micro HDMI connectors through 90° so that they are on the same plane as the ethernet and USB connectors.

The rear panel is made from 3mm acrylic and allows for communication via Bluetooth and Wi-Fi signals from the Pi5.

The standard version allows for access to the SD Card from the assembled enclosure and the NS version contains the SD Card within the sealed enclosure.

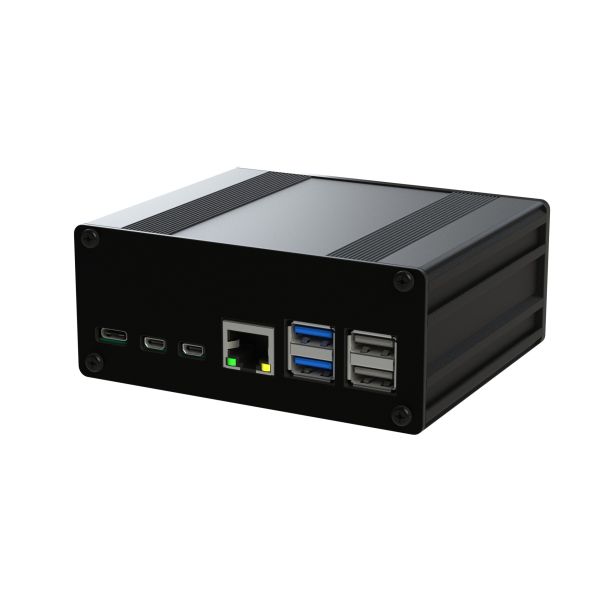

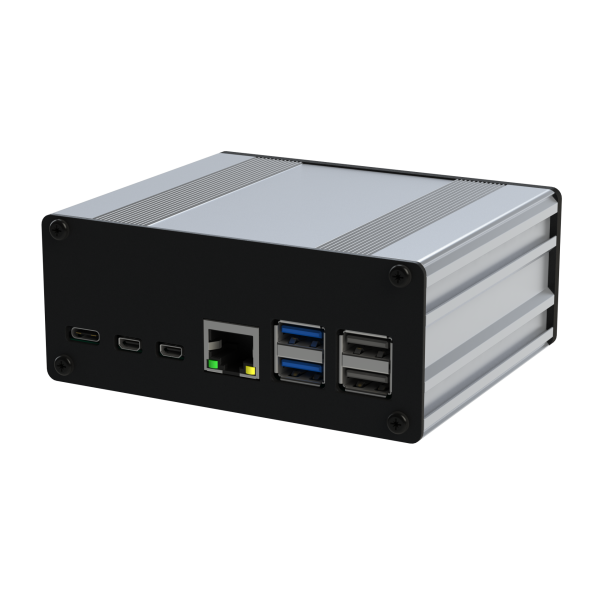

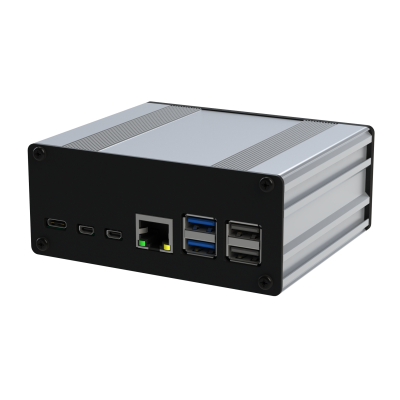

Case is available in silver or black as standard. End plates are black

Raspberry_Pi5_with_Extender_pic1

Extrusion

Material: Aluminium 6063 T6 (HE9)

Finish: Silver anodised 5μm or black anodised 10μm



Front End Plate

Material: Aluminium 5005 sheet

Finish: Black anodised 10μm

Thickness: 1.5mm

Available in Black as standard.

Rear End Plate

Material: Acrylic

Finish: Black

Thickness: 3.0mm



Screws

No. 4 x 3/8” Posi-pan head Plastite self-tapping screws



Assembled Dimensions

Std version : 108.5mm x 45mm x 91mm

NS version: 108.5mm x 45mm x 94mm

The Pi-Box Pro5 M2 is designed to house the Raspberry Pi 5, the Lincoln Binns Extender Board and the Raspberry Pi Active Cooler and the M2 HAT

Raspberry_Pi5_with_Extender_Active_Cooler_pic1
