E-Case F
E-Case F
As low as
£8.10
- Fits a 160mm wide PCB or carrier plate
- Cut lengths: 80mm, 160mm or 220mm
- Material: Aluminium 6063 T5
- Cut tolerance: -0mm / +0.5mm
- Maximum height of components is 40.75mm
- Weight: 2.24kg/m
The E-Case F is an extruded aluminium enclosure box section that has been designed to fit a 160mm wide PCB or carrier plate.

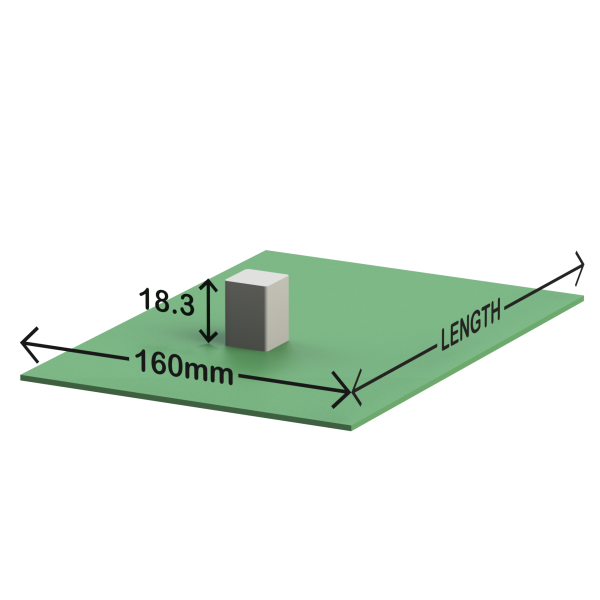

The maximum height of components on a board mounted in the bottom slot is 18.3mm.
Available in cut lengths of 80mm, 160mm or 220mm.

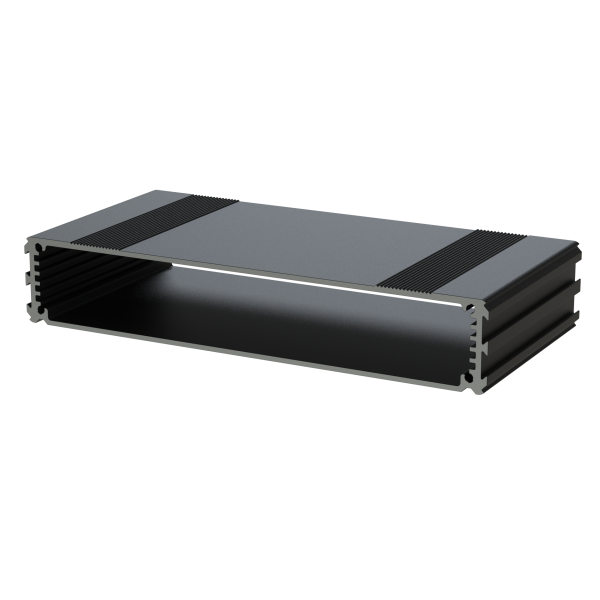

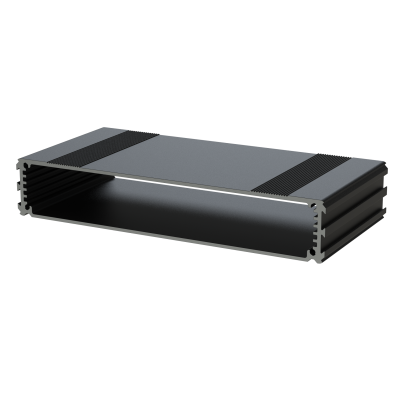

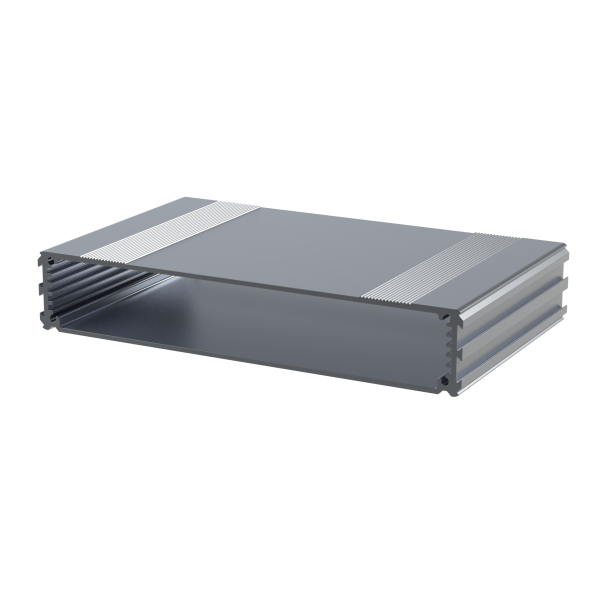

In silver or pre-anodised in black - the cut edges of the extrusion are not anodised.
For alternative lengths, colours or for full customisation go to the customisation area of the website
