E-Case F Enclosure Kit

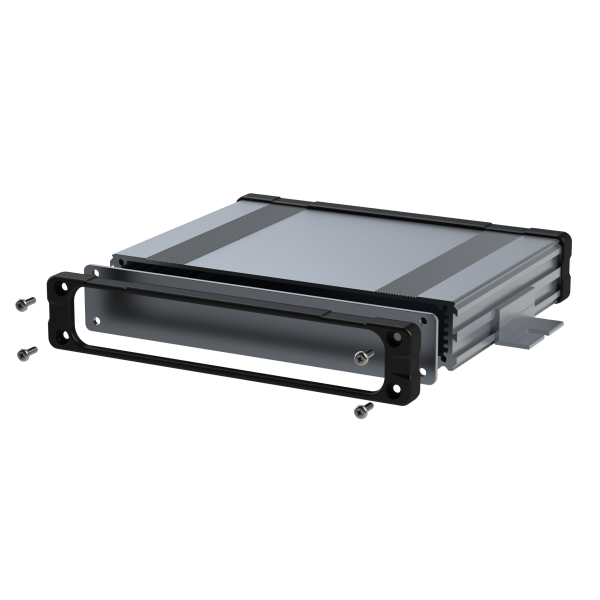

E-Case F Enclosure Kit with End Plates, Bezels and Linc-lugs

E-Case F Enclosure Kit

From £8.59

To £71.25

  • Extrusion
  • Endplates
  • Screws
  • Bezel
  • Mounting Options
  • Rubber Feet
Customize E-Case F Enclosure Kit
  • Buy 10 for £12.83 each and save 10%
  • Buy 50 for £12.11 each and save 15%
  • Buy 100 for £11.76 each and save 17%
  • Buy 500 for £11.40 each and save 20%
  • Buy 1000 for £11.04 each and save 23%
  • Buy 2500 for £10.69 each and save 25%
  • Buy 10 for £25.64 each and save 10%
  • Buy 50 for £24.22 each and save 15%
  • Buy 100 for £23.50 each and save 18%
  • Buy 500 for £22.79 each and save 20%
  • Buy 1000 for £22.08 each and save 22%
  • Buy 2500 for £21.37 each and save 25%
  • Buy 10 for £35.26 each and save 10%
  • Buy 50 for £33.30 each and save 15%
  • Buy 100 for £32.32 each and save 18%
  • Buy 500 for £31.34 each and save 20%
  • Buy 1000 for £30.36 each and save 23%
  • Buy 2500 for £29.39 each and save 25%
  • Buy 10 for £7.73 each and save 10%
  • Buy 50 for £7.30 each and save 15%
  • Buy 100 for £7.09 each and save 17%
  • Buy 500 for £6.87 each and save 20%
  • Buy 1000 for £6.66 each and save 22%
  • Buy 2500 for £6.44 each and save 25%
  • Buy 10 for £15.45 each and save 10%
  • Buy 50 for £14.59 each and save 15%
  • Buy 100 for £14.17 each and save 17%
  • Buy 500 for £13.74 each and save 20%
  • Buy 1000 for £13.31 each and save 22%
  • Buy 2500 for £12.88 each and save 25%
  • Buy 10 for £21.25 each and save 10%
  • Buy 50 for £20.07 each and save 15%
  • Buy 100 for £19.48 each and save 17%
  • Buy 500 for £18.89 each and save 20%
  • Buy 1000 for £18.30 each and save 22%
  • Buy 2500 for £17.71 each and save 25%
  • Buy 10 for £3.70 each and save 10%
  • Buy 50 for £3.49 each and save 15%
  • Buy 100 for £3.39 each and save 18%
  • Buy 500 for £3.29 each and save 20%
  • Buy 1000 for £3.19 each and save 22%
  • Buy 2500 for £3.08 each and save 25%
  • Buy 10 for £3.70 each and save 10%
  • Buy 50 for £3.49 each and save 15%
  • Buy 100 for £3.39 each and save 18%
  • Buy 500 for £3.29 each and save 20%
  • Buy 1000 for £3.19 each and save 22%
  • Buy 2500 for £3.08 each and save 25%
  • Buy 10 for £1.68 each and save 10%
  • Buy 50 for £1.59 each and save 15%
  • Buy 100 for £1.54 each and save 18%
  • Buy 500 for £1.50 each and save 20%
  • Buy 1000 for £1.45 each and save 22%
  • Buy 2500 for £1.40 each and save 25%
  • Buy 10 for £0.45 each and save 10%
  • Buy 50 for £0.43 each and save 14%
  • Buy 100 for £0.41 each and save 18%
  • Buy 500 for £0.40 each and save 20%
  • Buy 1000 for £0.39 each and save 22%
  • Buy 2500 for £0.38 each and save 24%
  • Buy 10 for £0.42 each and save 11%
  • Buy 50 for £0.40 each and save 15%
  • Buy 100 for £0.39 each and save 17%
  • Buy 500 for £0.38 each and save 19%
  • Buy 1000 for £0.36 each and save 23%
  • Buy 2500 for £0.35 each and save 26%
  • Buy 10 for £1.01 each and save 10%
  • Buy 50 for £0.95 each and save 15%
  • Buy 100 for £0.92 each and save 18%
  • Buy 500 for £0.90 each and save 20%
  • Buy 1000 for £0.87 each and save 22%
  • Buy 2500 for £0.84 each and save 25%
  • Buy 10 for £0.88 each and save 10%
  • Buy 50 for £0.83 each and save 15%
  • Buy 100 for £0.81 each and save 17%
  • Buy 500 for £0.78 each and save 20%
  • Buy 1000 for £0.76 each and save 22%
  • Buy 2500 for £0.74 each and save 24%
  • Buy 10 for £1.74 each and save 10%
  • Buy 50 for £1.64 each and save 15%
  • Buy 100 for £1.59 each and save 18%
  • Buy 500 for £1.54 each and save 20%
  • Buy 1000 for £1.50 each and save 22%
  • Buy 2500 for £1.45 each and save 25%
  • Buy 10 for £2.50 each and save 10%
  • Buy 50 for £2.36 each and save 15%
  • Buy 100 for £2.29 each and save 18%
  • Buy 500 for £2.22 each and save 20%
  • Buy 1000 for £2.15 each and save 23%
  • Buy 2500 for £2.09 each and save 25%
  • Buy 10 for £13.34 each and save 10%
  • Buy 50 for £12.60 each and save 15%
  • Buy 100 for £12.23 each and save 17%
  • Buy 500 for £11.86 each and save 20%
  • Buy 1000 for £11.49 each and save 22%
  • Buy 2500 for £11.12 each and save 25%
  • Buy 10 for £5.36 each and save 10%
  • Buy 50 for £5.07 each and save 15%
  • Buy 100 for £4.92 each and save 17%
  • Buy 500 for £4.77 each and save 20%
  • Buy 1000 for £4.62 each and save 22%
  • Buy 2500 for £4.47 each and save 25%
  • Buy 10 for £4.04 each and save 10%
  • Buy 50 for £3.82 each and save 15%
  • Buy 100 for £3.70 each and save 18%
  • Buy 500 for £3.59 each and save 20%
  • Buy 1000 for £3.48 each and save 22%
  • Buy 2500 for £3.37 each and save 25%
  • Buy 10 for £2.82 each and save 10%
  • Buy 50 for £2.66 each and save 15%
  • Buy 100 for £2.58 each and save 18%
  • Buy 500 for £2.50 each and save 20%
  • Buy 1000 for £2.43 each and save 22%
  • Buy 2500 for £2.35 each and save 25%
  • Buy 10 for £1.34 each and save 10%
  • Buy 50 for £1.27 each and save 15%
  • Buy 100 for £1.23 each and save 17%
  • Buy 500 for £1.19 each and save 20%
  • Buy 1000 for £1.15 each and save 23%
  • Buy 2500 for £1.12 each and save 25%
  • Buy 10 for £0.78 each and save 10%
  • Buy 50 for £0.74 each and save 15%
  • Buy 100 for £0.72 each and save 17%
  • Buy 500 for £0.70 each and save 20%
  • Buy 1000 for £0.67 each and save 23%
  • Buy 2500 for £0.65 each and save 25%
  • Buy 10 for £1.84 each and save 10%
  • Buy 50 for £1.73 each and save 15%
  • Buy 100 for £1.68 each and save 18%
  • Buy 500 for £1.63 each and save 20%
  • Buy 1000 for £1.58 each and save 23%
  • Buy 2500 for £1.53 each and save 25%
  • Buy 10 for £0.96 each and save 10%
  • Buy 50 for £0.91 each and save 15%
  • Buy 100 for £0.88 each and save 18%
  • Buy 500 for £0.86 each and save 20%
  • Buy 1000 for £0.83 each and save 22%
  • Buy 2500 for £0.80 each and save 25%
  • Buy 10 for £3.02 each and save 10%
  • Buy 50 for £2.85 each and save 15%
  • Buy 100 for £2.76 each and save 18%
  • Buy 500 for £2.68 each and save 20%
  • Buy 1000 for £2.60 each and save 22%
  • Buy 2000 for £2.51 each and save 25%
  • Buy 10 for £3.65 each and save 10%
  • Buy 50 for £3.44 each and save 15%
  • Buy 100 for £3.34 each and save 18%
  • Buy 500 for £3.24 each and save 20%
  • Buy 1000 for £3.14 each and save 22%
  • Buy 2500 for £3.04 each and save 25%

* Required Fields

Your Customization

    £8.59

    - +
    Add to Compare

    The E-Case F Enclosure Kit consists of all of the options needed to make a complete enclosure. The kit includes extrusion, end plates, screws, bezels, mounting options and rubber feet.

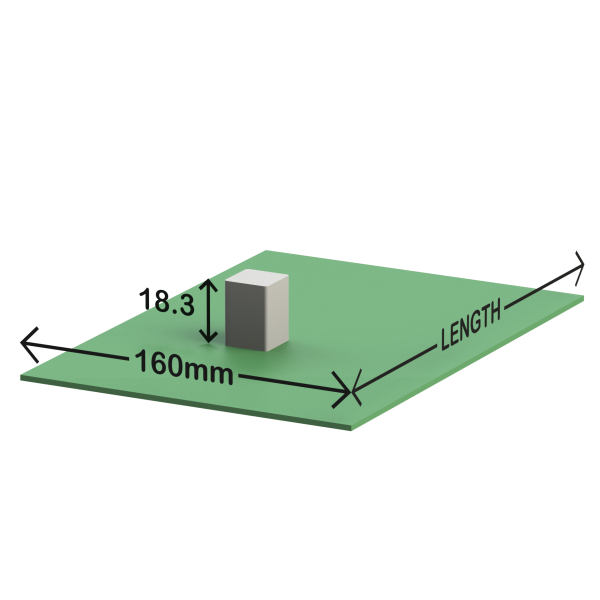

    The maximum height of components on a board mounted in the bottom slot is 18.6mm. The outside of the box features a pair of dovetail slots which will accept multiple mounting options.

    Available in cut lengths of 80mm, 160mm or 220mm.

    Designed to fit a 160mm wide PCB.

    In silver or black - the cut edges of the extrusion are not anodised.

    Extrusion

    Material: Aluminium 6063 T6 (HE9)

    Finish: Silver anodised 5μm or black anodised 10μm

    End Plates

    Material: Aluminium 5005 sheet

    Finish: Silver anodised 5μm or black anodised 10μm

    Thickness: 2.0mm

    Screws

    No. 4 x 3/8” Posi-pan head Plastite self-tapping screws

    Accessories Available in kit

    End Plates

    Bezels

    Carrier Plates

    Screws

    Rubber Feet

    Customisation

    If you require a fully customised enclosure including cut-outs and artwork, go to the customisation area of the website.

    Mounting Options include:

    Clip-on Brackets

    DIN Rail Clip

    Linc-Lugs

    VESA Mount Bracket

    Bent End Plate Bracket



    pdf
    E-Case
    step
    E-Case F - 3D Model
    dxf

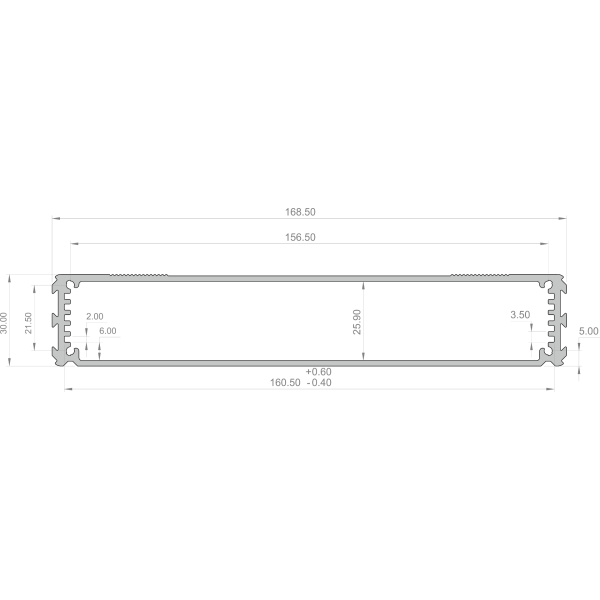

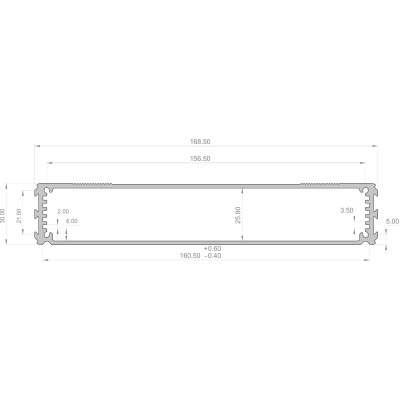

    E-Case F - Dimensioned Drawing
    pdf
    E-Case F - Dimensioned Drawing
    pdf
    E-Case F Print Area*
    * You have to Login or Register to download this file
