E-Case D

As low as £11.17
In stock
SKU
e-case-d
  • Fits a 160mm wide PCB or carrier plate
  • Cut lengths: 80mm, 160mm or 220mm
  • Material: Aluminium 6063 T5
  • Cut tolerance: -0mm / +0.5mm
  • Maximum height of components is 40.75mm
  • Weight: 3.4kg/m

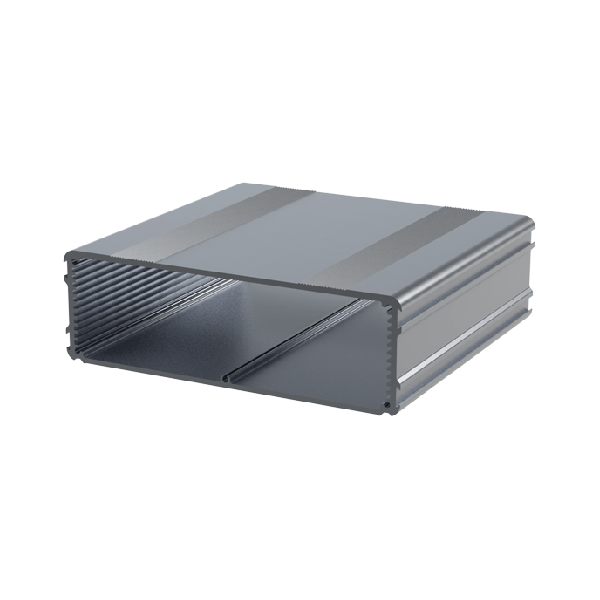

The E-Case D is an extruded aluminium box section that has been designed to fit a 160mm wide PCB or carrier plate.

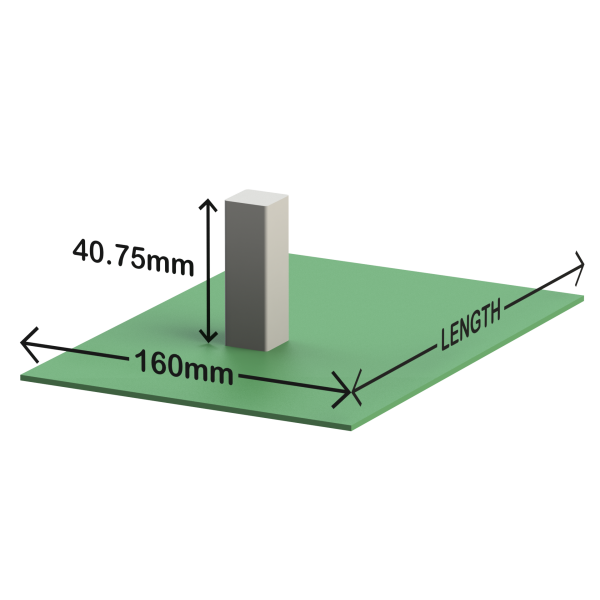

The maximum height of components on a board mounted in the bottom slot is 40.75mm.

Available in cut lengths of 80mm, 160mm or 220mm.

In Silver, clear anodise or pre-anodised in black - the cut edges of the extrusion are not anodised.

For alternative lengths, colours or for full customisation go to the customisation area of the website

dxf

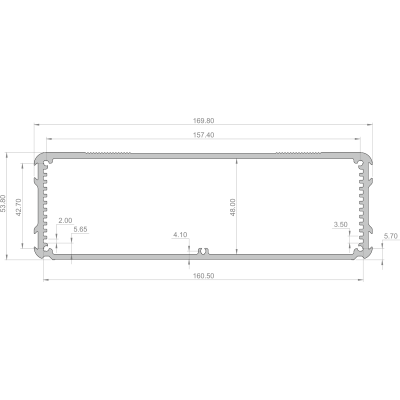

Dimensioned DXF
pdf
Dimensioned Drawing - PDF
step
3D Model
* You have to Login or Register to download this file
Download Datasheet Download Datasheet
