E-Case B
E-Case B
As low as
£6.57
- Fits a 100mm wide PCB or carrier plate
- Cut lengths: 80mm, 160mm or 220mm
- Material: Aluminium 6063 T5
- Cut tolerance: -0mm / +0.5mm
- Maximum height of components is 18.6mm
- Weight: 1.38kg/m

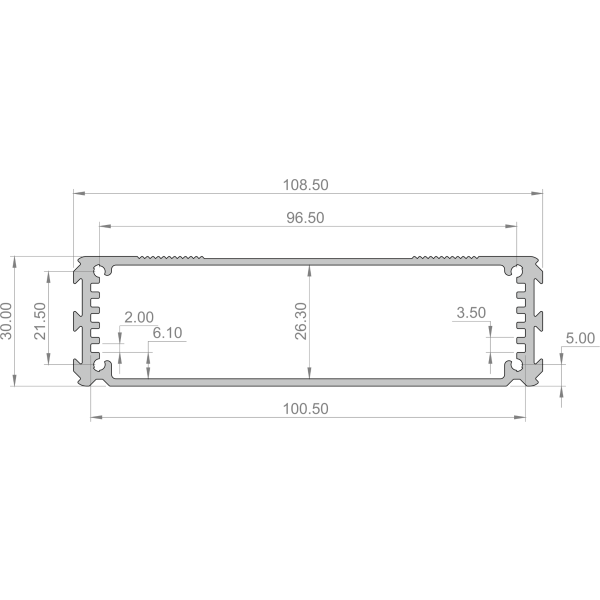

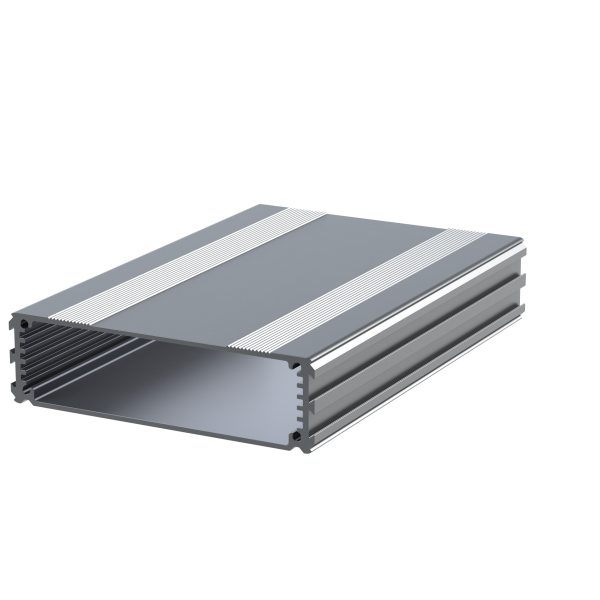

The E-Case B is an extruded aluminium enclosure box section that has been designed to fit a 100mm wide PCB or carrier plate.

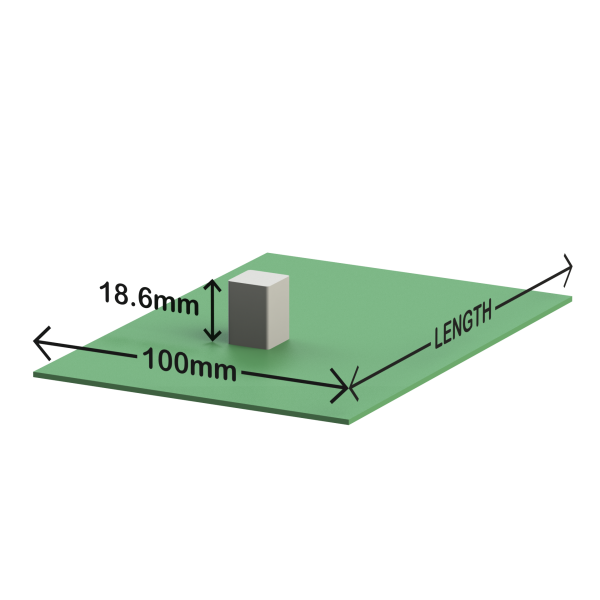

The maximum height of components on a board mounted in the bottom slot is 18.6mm.
Available in cut lengths of 80mm, 160mm or 220mm.
In silver or pre-anodised in black - the cut edges of the extrusion are not anodised.
For alternative lengths, colours or for full customisation go to the customisation area of the website
